Pico Tech PicoScope 3000E

The PicoScope 3000E Series achieves several “firsts” for USB powered scopes: first to 500 MHz, first to 5 GS/s sampling, first with over 1 GS of buffer memory.

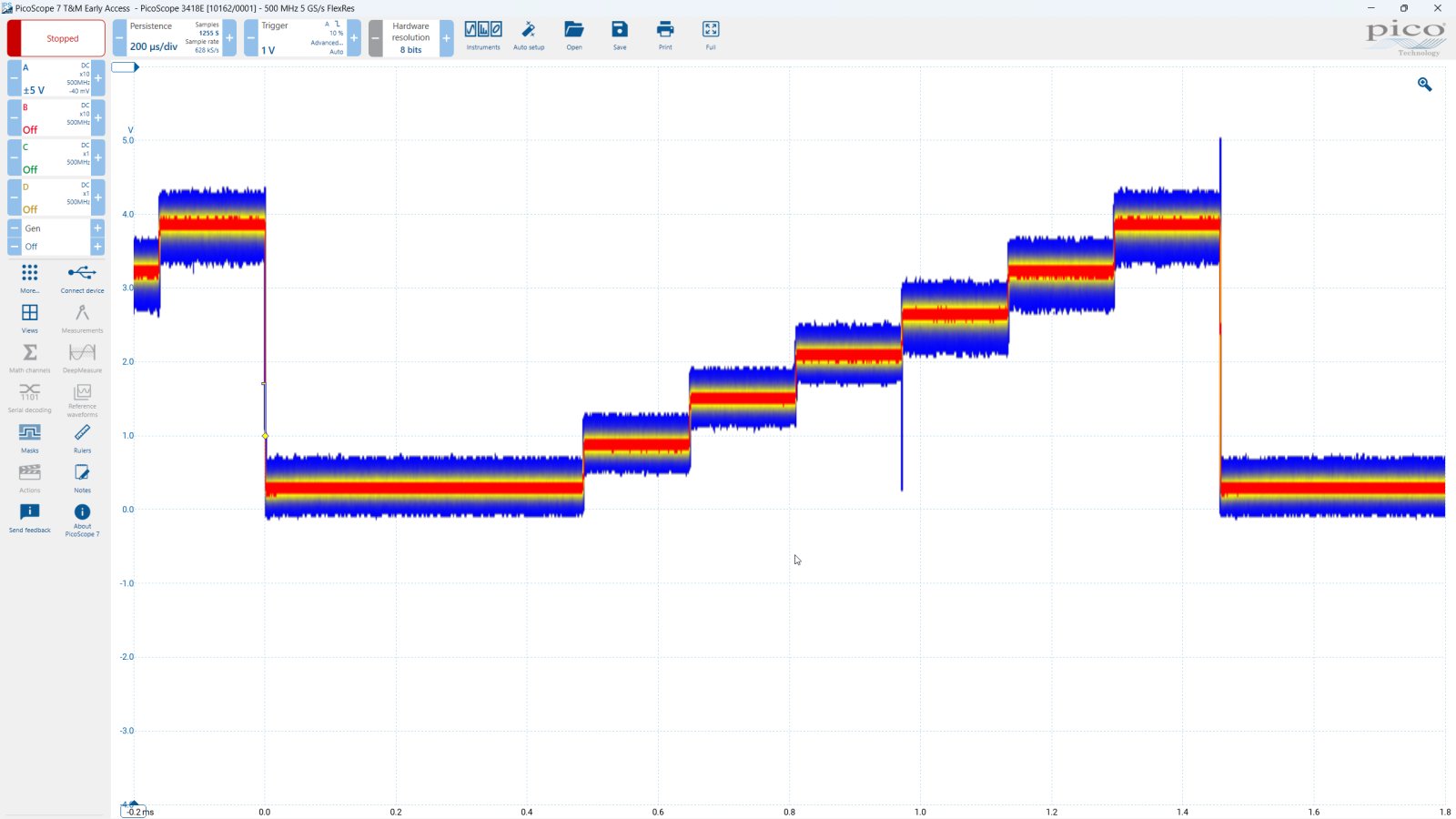

PicoScope 3000E Series oscilloscopes have waveform capture memories of up to 2 billion samples – many times larger than competing scopes. Deep memory enables the capture of long-duration waveforms at maximum sampling speed which is invaluable for capturing signals ranging from fast serial data through to complex power supply start-up sequences. The waveform shows a capture of 500 million samples with a zoom factor of 10,000 to reveal details of individual pulses.

Waveform buffer and navigator

Have you ever seen a glitch on an oscilloscope screen but by the time you stop the scope it has gone? PicoScope can store the last 40,000 oscilloscope or spectrum waveforms in its circular waveform buffer, effectively letting you turn back time to find that elusive waveform.
The buffer navigator provides an efficient way of viewing, navigating and searching through waveforms. The PicoScope 3000E also features hardware-based trigger time stamping so the gap between each waveform is displayed in high resolution.
Tools such as mask limit testing and measurement limits can also be used to scan through each waveform in the buffer automatically with options to only show those that pass or fail - no need to search for that needle in a haystack.
More advanced tools such as serial decoding and DeepMeasure work to analyze data packets or events across all waveform buffers in the deep memory, making the PicoScope 3000E Series some of the most capable oscilloscopes on the market.

Hardware acceleration engine (HAL4)

Some oscilloscopes struggle when you enable deep memory; the screen update rate slows and the controls become unresponsive. The PicoScope 3000E Series avoids this limitation with the use of a dedicated fourth-generation hardware acceleration (HAL4) engine inside the oscilloscope.
Its massively parallel design effectively creates the waveform image to be displayed on the PC screen and allows the continuous capture and display to the screen of up to 2 billion samples every second. The hardware acceleration engine eliminates any concerns about the USB connection or PC processor performance being a bottleneck.

PicoScope 3000E Series Features

• 350 MHz or 500 MHz with 5 GS/s
• 10-bit resolution (14 bits using enhanced resolution)
• 2 GS ultra-deep capture memory
• Function/arbitrary waveform generator included
• 40 serial protocol decoders included as standard
• Segmented memory, persistence and fast waveform updates
• Advanced math, measurements, masks and digital triggering

Ask for PicoScope 3000E Series detailed specification.
