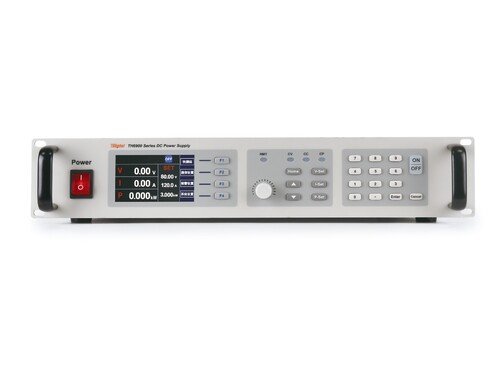

Tonghui TH6900 Series Switch Programmable DC Power Supply Rated Voltage: 1000V Rated Current: 200A Rated Power: 3000W
Tonghui TH6900 Series Datasheet
|
Tonghui TH6900 Series Features
- Rated Voltage: 1000V
- Rated Current: 200A
- Rated Power: 3000W
- Wide range, 93% efficiency, Ten Parallel, Active Current Sharing
- High resolution, high precision; low ripple, low noise
- Built-in function generator
- OVP, OCP, OPP, OTP, input undervoltage protection, SENSE terminal reverse connection protection
|
|
Brief Introduction
TH6900 series is a programmable switching DC power supply with a wide range of output. There are 21 models of 750W, 1500W and 3000W available. The instrument supports up to 10 master-slave units of the same model in parallel to meet higher output current and output power requirements.
TH6900 series supports sequence test function, allowing users to set a series of voltage, current, power, and automatically output according to the set rules, to better meet the user's application of automatic test and burn-in test. The instrument can store 50 sequences, each sequence contains 22 steps, the function of each step can be set independently, a total of 12 independent functions, including loop control, slope mode output and other rich control functions.
|
|
