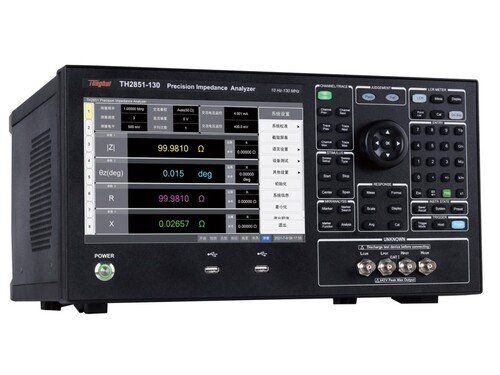

Tonghui TH2851 Series Datasheet
|
Tonghui TH2851 Series Features
- Test frequency: 10Hz-130MHz
- High precision: using automatic balance bridge technology, four-terminal pair test configuration
- High stability and consistency
- High speed: the fastest test speed up to 5ms
- Three test methods: point test, list scan, and graph scan
- 1601 point multi-parameter list scanning function
- Four-parameter measurement
- 4-channel graphic scanning function, each channel can display 4 curves, 16 kinds of split-screen display modes for channels and curves
|
|
Applications
Passive component: Impedance parameter estimation and performance analysis of capacitor, inductor, magnetic core, resistor, piezoelectric devices, transformers, chip components and network components
Semiconductor component:Parasitic parameter test and analysis of LED driver integrated circuit C-VDC features of varactors. Parasitic parameter analysis of transistors or integrated circuit
Other components:Impedance assessment of printed circuit boards, relays, switches, cables, batteries
Dielectric material:Dielectric constant and loss angle evaluation of plastics, ceramics and other materials
Magnetic materials: Magnetic permeability and loss angle assessment of ferrite, amorphous body and other magnetic materials
Semiconductor materials :Dielectric constant, electrical conductivity and C-V characteristics of semiconductor materials
Liquid crystal cellDielectric constant, elastic constant and C-V characteristics of liquid crystal cell
|
