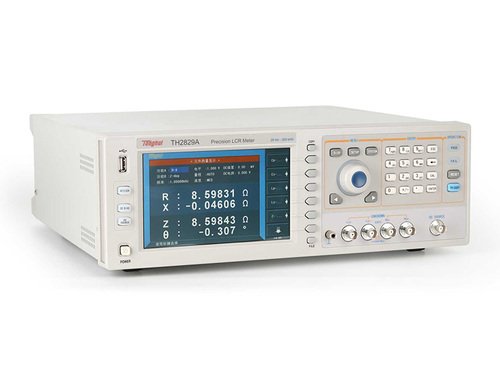

Tonghui TH2829 Series Benchtop Type LCR Meter
Tonghui TH2829 Series Datasheet
|
Tonghui TH2829 Series Features
- Test signal frequency up to 1 MHz, resolution of 1mHz, 5-digit frequency input
- Maximum test speed: 9ms/time
- Simultaneous display of 4 kinds of test parameters
- 201 -point list sweep function
- Continuous curve scanning/graphical analysis function
- Internal storage of 100 sets of LCRZ setting files and 10 sets of GIF image
- GIF image and CSV data files can be saved to USB storage directly
- HANDLER, USB, LAN, RS232C, GPIB (option), DCI interface
|
|
Brief Introduction
By dint of leading impedance measurement technology and rich R&D experience, Tonghui continuously introduces representative impedance measurement product --- TH2829 series automatic component analyzer is another excellent product we have produced.TH2829 series automatic component analyzer possesses a higher test speed, a more comprehensive analysis function and friendly human-computer interactive experience by adopting the latest high-speed processor and a new software system. Well-designed measuring circuit and optimized algorithms further enhance the test stability of low-D capacitance and high-Q inductors. The instrument is provided with 10V AC test level, 10V/100mA bias current and standalone 10V/50mA DC current, making it convenient for applying in the test of all kinds of active/ passive devices. Main/sub parameters display, enhanced display system design, 150-points list sweep and graphical analysis capabilities of multiple parameters meet the most application requirements of customers
|
|
