Tonghui TH2515 Series Datasheet
|
Tonghui TH2515 Series Features
- Test Range 0.1uO-110MO.
- Basic Accuracy: 0.01%
- With temperature compensation.
- Temperature Test.
- 5 1/2 Digital Display.
- 24 bits, 4.3-inch and 4-wire touch LCD screen
- 30 groups of parameter files can be saved and loaded
- Interfaces such as RS232, USB HOST, USB Device and LAN are available and GPIB is optional
|
|
Brief Introduction

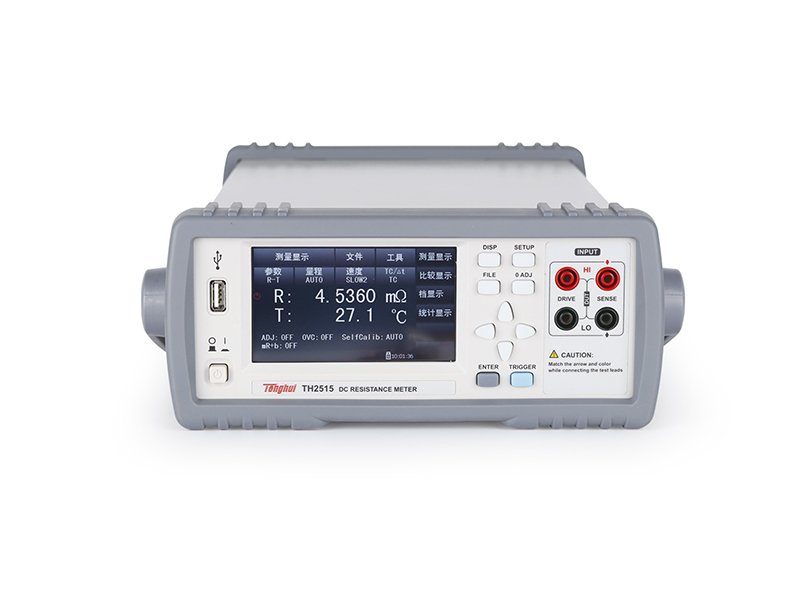

On the basis of rich experience in impedance test and wide market research, now Tonghui launches a new touch screen meter---TH2515 DC Resistance meter. TH2515, with elegant appearance, easy operation and excellent performance, is comparable to the most advanced products in the market.
TH2515 adopts 32 bits CPU and high density SMD technology.24 bits, 4.3-inch and touch LCD screen brings ease for your eyes and convenience to your operation. For the contact influence of the thermoelectricity on DUT, its elimination is achieved. The maximum 0.01% accuracy and minimum 0.1 µO resolution shore up its leading role in testing relay contact resistance, interconnecting resistance, conductor resistance, PCB resistance and welding-hole resistance. Temperature compensation and conversion functions make your tests be free from the effect of the environment temperature. The offset voltage compensation has effectively eliminated the electromotive force of the DUT and its contact potential difference. Automation on production lines can be greatly improved by the realization of ultra-high test speed and the signal output of 10 compare results through HANDLER interface.
|
