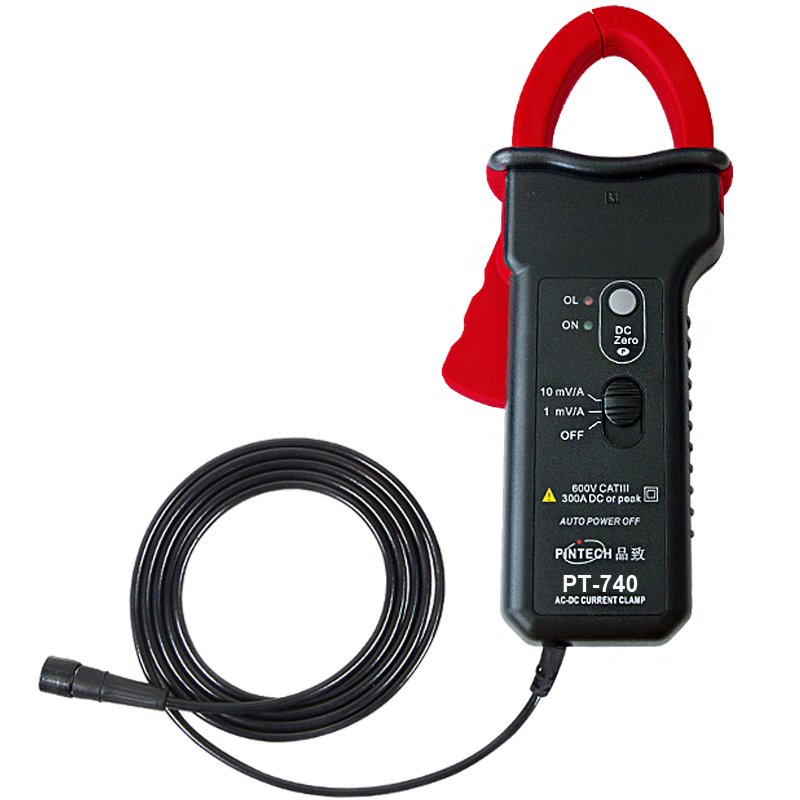

Pintech PT-740 (150KHz,300A) AC/DC current probe
|
PT-740 (150KHz,300A) Current probe
Compatible with any oscilloscope,standard BNC interface.
Attenuation ratio : 1A/10mV,1A/1mV
Input : AC : 0.2-30A,DC : 0.4-30A;
AC : 30-300A DC : 30-300A
Big clamp,easy operation.
|
|
Pintech PT-740 Specification
| PT-740 AC/DC Current clamp probe(Type 1:battery power supply only,has auto power off after using 10 minutes function.)(Type 2:battery & adaptor power supply,doesn't have auto power off after using 10 minutes function.)Kindly inform which type you want to order. | | Accuracy and phase shift | Current measuring range | AC:0.2A~30A peak,DC:0.4A~30A | AC:30A~300Apeak,DC:30A~300A | | Attenuation | 10mV/A | 1mV/A | | Accuracy | DC-1KHz,1.5%±5mV | | Phase shift(45~65Hz) | 10~20A:<3°;20~30A:<2° | 10~100A:<2°;100~300A:<1.5° | | Noise | 1mV rms | | Rise/fall time | 2.3µs | | | Reference conditions :18?~28?,20~75%RH,Sine signal frequency 48Hz~65Hz, External magnetic field <40Aht,No dc component, no current carrier, center test sample, load impedance=1MOand=100pF,DC~65Hz Measurement former reset is 0,battery 9V±0.1V | | Bandwidth | DC~150kHz(-3dB) | | Load impedance | =1MOand=100pF | | Insert impedance | 50Hz-0.39mO,1000Hz-58mO | | Working voltage | Max.600V rms | | Common mode voltage | Max.600V rms | | Adjacent conductor influence | 50Hz,<10mA/A | | Jaw opening conductor position influence | 0.5%numerical reading | | Battery | 9V Alkaline battery | | Battery capacity indicator | When >6.5V,LED turns green | | Battery life | About 50 hour | | Overload indicator | LED turn red | | Automatic shutdown time | 10min | | Dc zero adjustment | v | | Jaw opening insert conductor | One cable: dia. 30mm. Two cable :dia.24mm or 2?31.5?10mm bus bar | | Size | 224?97?44mm | | Weight | 440g | | Color | Dark grey box; Red jaw opening | | output | 2m Coaxial cable and insulation BNC connector jack |
|
|
