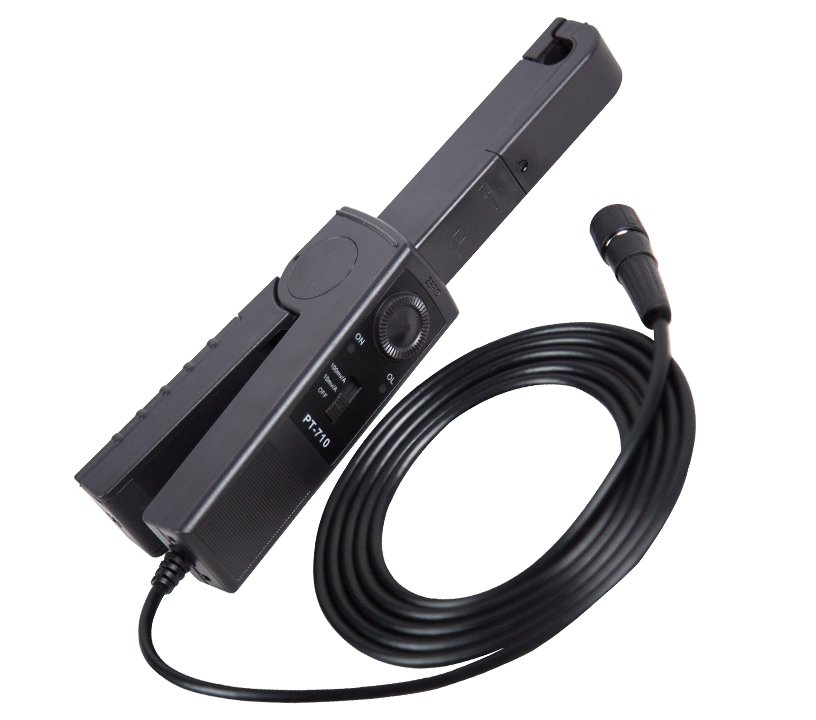

Pintech PT-710 (100KHZ,0.2-100A) AC/DC current probe
|
PT-710 (100KHz,100A) AC/DC Current probe
Bandwidth : 100KHz
Attenuation ratio : 100mV/A,10mV/A
Current range : 0.2A-10A,10A-100A
Accuracy : 2%+5mV
|
|
Pintech PT-710 Specification
| PT-710 Electrical Specifications | | Main Feature | Current range | DC:0.2A~10A AC: 0.2A~10A peak | DC:10A~100A AC:10A~100A peak | | Output signal (percentage error) | 2%±5mV | 2%±5mV | | Frequency range(-3dB) | DC~100kHz | | | | | | Load impedance | =1MO&=100pF | | Noise | 2mV | | Rise/fall time | 3.5µs | | Working voltage | Max 600Vrms | | Common mode voltage | Max 600Vrms | | Battery | 9V battery (international delivery is forbidden,please buy it at local ) | | Low battery indicator | >6.5V,LED is green | | Overload indicator | Red LED means the measure current is too big and it need to change the measuring range | | Oper.Temp | 0~+50? | | Preservation temperature |
| | Temperature effect | Per 10?,<0.2% | | | | Operating height | 0~2000m | | Maximum EZhong insert | Dia.11mm | | Size | 231?36?67mm | | Weight | 310g(without battery) | | Output | 2 meters insulation BNC connector cable |
|
|
