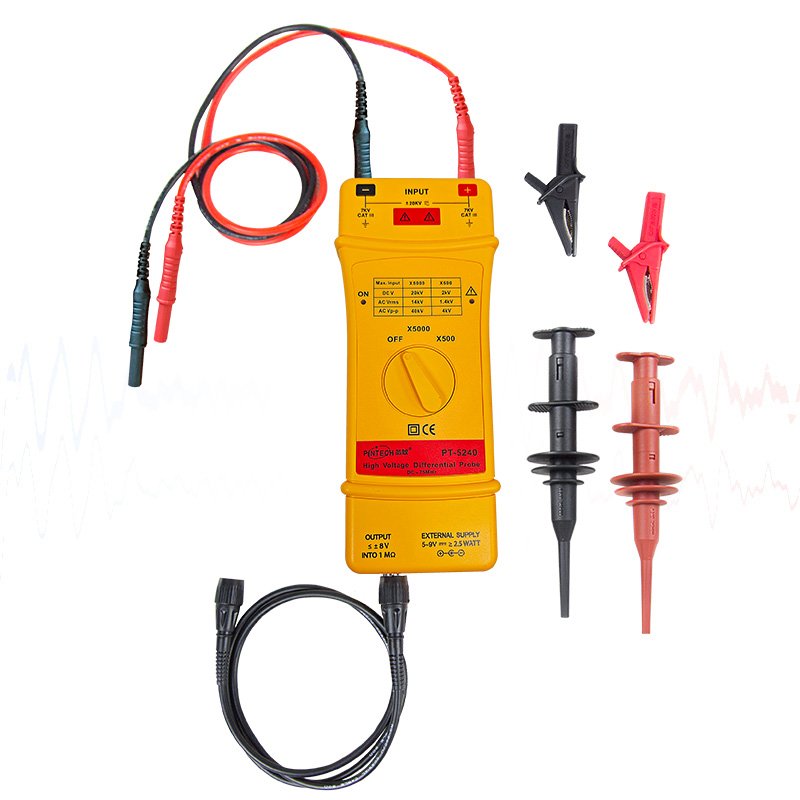

Pintech PT-5240 (40KV,75MHz) high voltage differential probe

PT-5240 (40KV,75MHz) Range (Switchable) : 2(X500,X5000) Common Mode Voltage DC+AC peak to peak : 40KV Accuracy : 2% Max. measuring voltage : 20KV DC,40KVp-p AC

Pintech PT-5240 Specification

Model number	PT-5240
Differential Voltage DC+AC peak to peak	40KV
Bandwidth (50O load -3dB)	75MHz
Common Mode Voltage DC+AC peak to peak	40KV
Common Mode Voltage AC/RMS	14KVrms
Range(Switchable)	2%
Input Impedance (Between Input)	100MO//1PF
Input voltage range	=4KV at X500=40KV at X5000
Common Mode Rejection Ratio(CMRR)	60Hz:>10000:1100hz:>1000:11Mz:>300:1
Noise(Into 50O Load)	=1.0V rms
Accuracy	2%
Power Source	External DC 9V/200mA
Dimension(LXWXH)	218x83x30mm
Weight	350g
