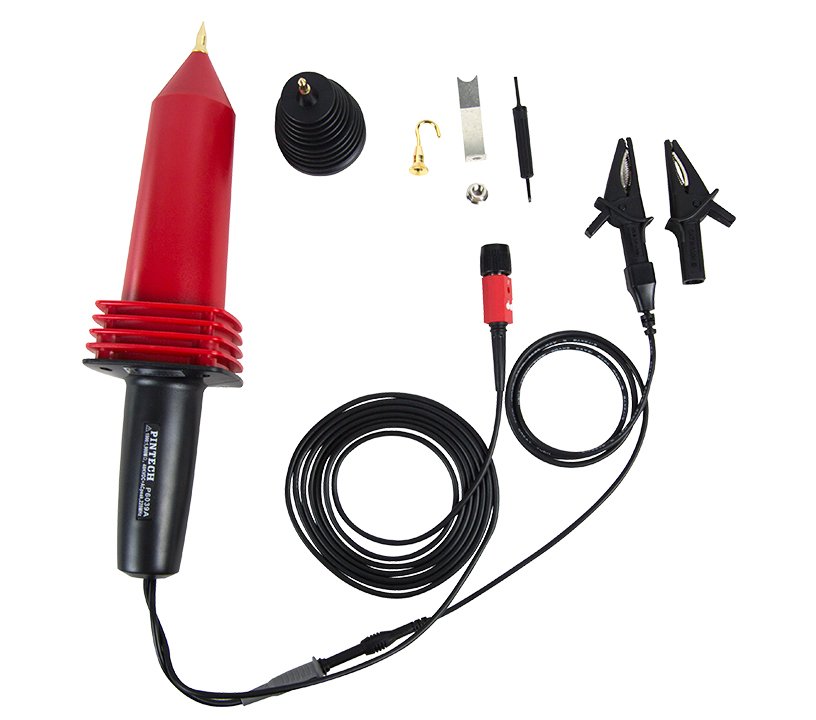

Pintech P6039A (39KV.220MHz) high voltage probe

P6039A (39KV.220MHz) high voltage probe Division Ratio 1000 : 1 Input Resistance 900MO Input Capacitor 2.0PF Max. DC+AC pack 39KV CAT ? Max. AC RMS. 27KV CAT ? Max. Loading Current 43uA

Pintech P6039A Specification

Model	P6039A
Division Ratio	1000:1
Max. pulse voltage	27KVp-p
Input Resistance	900MO
Input Capacitor	2.0PF
Max. DC	39KV CAT ?
Max. AC RMS.	27KV CAT ?
Max. Loading Current	43uA
Bandwidth	DC~220MHz(-3dB)
Rise Time	1.6 ns
Signal /Noise	>60dB at 1KHz; >50dB at 1MHz
DCV Accuracy	?3% Full Range
ACV Accuracy	?3% at 1KHz
Temp. Coefficient	?200 PPM/?
Compensation Range	10PF~35PF
Safety	Meets EN61010-031CAT?
Cable Length	2M±0.2M
Operation Temp.	-10~55?
Humidity	85%RH or less(at 35?)
Storage Temp.	-20~70?
Color: Handel/Body	Black/ Red
Weight /Volume	460g/80(W)×80(H) ×320(L)mm
