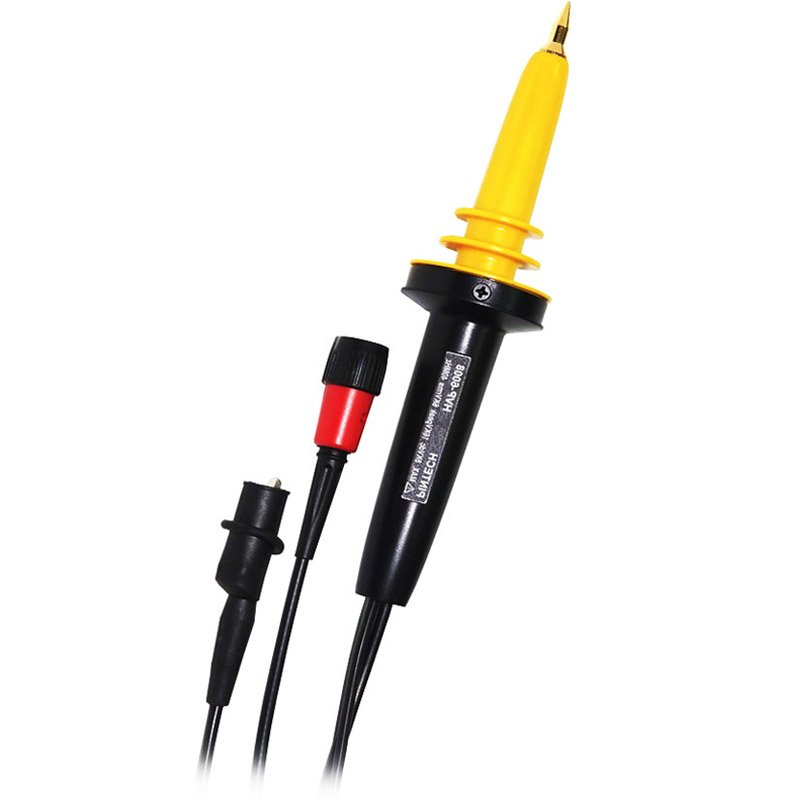

Pintech P6008 (8KV,40MHz) high-voltage probe
|
P6008 (8KV,40MHz) high-voltage probe
Short Description : Mini Type
Attenuation ratio : 1 : 1000
Input impedance : 100MO//3PF
|
|
Pintech P6008 Specification
| Max.Working Voltage | DC:0~8KV DCAC:Pluse?16KVpeak to peakAC:?6KV rms | | Single/Noise | DC?60dB(1KHz),?50dB(1MHz) | Bandwidth | DC~40MHz(-3dB) | | Division Ratio | 1:1000 | | Rise Time | ?9ns | | Input Resistance | 100MO±1% | | Input Capacitance | 3.0PF±0.5PF | | Compensation Range | 5PF~50PF | | Cable Length | 2.0meter(±0.2M) | | Temperature Coefficient | ?200PPM/? | | Accuracy | DC | ±2%(DC TO 5KV)±3%(more than 5KV) | | AC | ±3%(1KHz/1KV)-3dB 40MHz | | Safety App | CE | | Operating Temperature | 0~50? | | Storage Temperature | -20~+70? | | Weight/Volume | 180g/F47?214mm |
|
|
