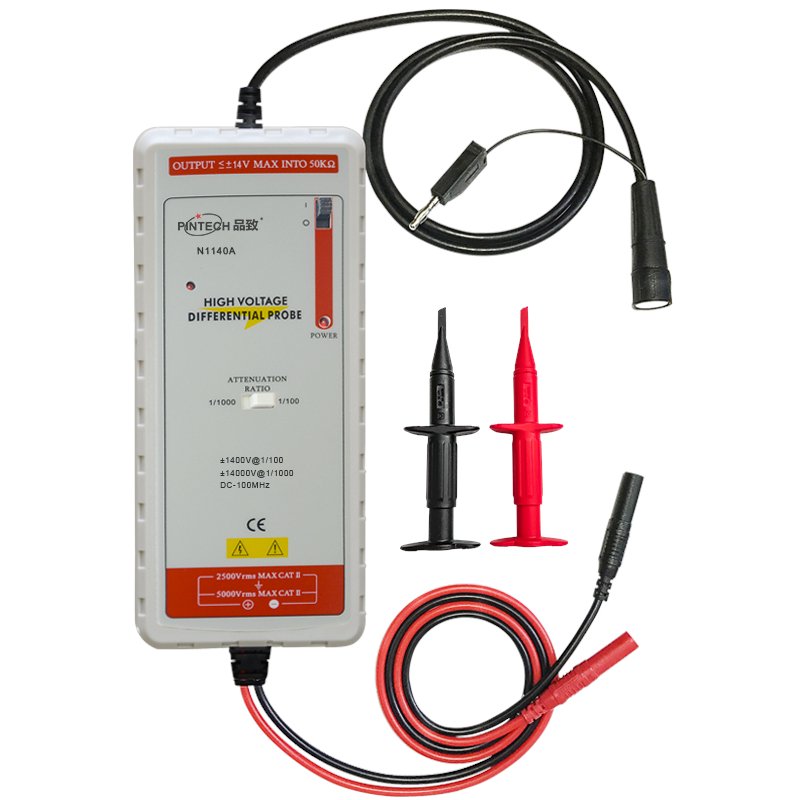

Pintech N1140A (14KVp-p,100MHz) high voltage differential probe

Bandwidth 100MHz Ma. measuring voltage : 14KVp-p Attenuation ratio : 1000 : 1,100 : 1 Voltage overload protection Compatible with any brand's oscilloscope. 1% accuracy,compatible with any oscilloscope,standard BNC interface. 2 attenuation ratio range,easy to operating. Battery & adaptor power supply.

Pintech N1140A Specification

Model	N1140A
Bandwidth	DC-100MHz
Accuracy	±1%
Input Impedance	10MO//2p F each side ground
Output Voltage
-Swing(into 50KO load)	7V
-Offset(typical)	?±5mV
-Input Impedance(typical)
Power Requirements
-Options	Power leads
BNC length	90cm
Cable length	60cm
Weigth	500g
Size(L×W×H)	2458436mm
Attenuation Ratio	1:1000/100
CMRR(typical)	-80dB@60Hz,-50dB@100Khz
Differential Input Voltage(Vp-p)	14KV@1/1000, 1.4KV@1/100
Common Mode Voltage(Vp-p)	14KV@1/1000 & 1/100
CMRR	CATII 1000V,CAT? 600V
