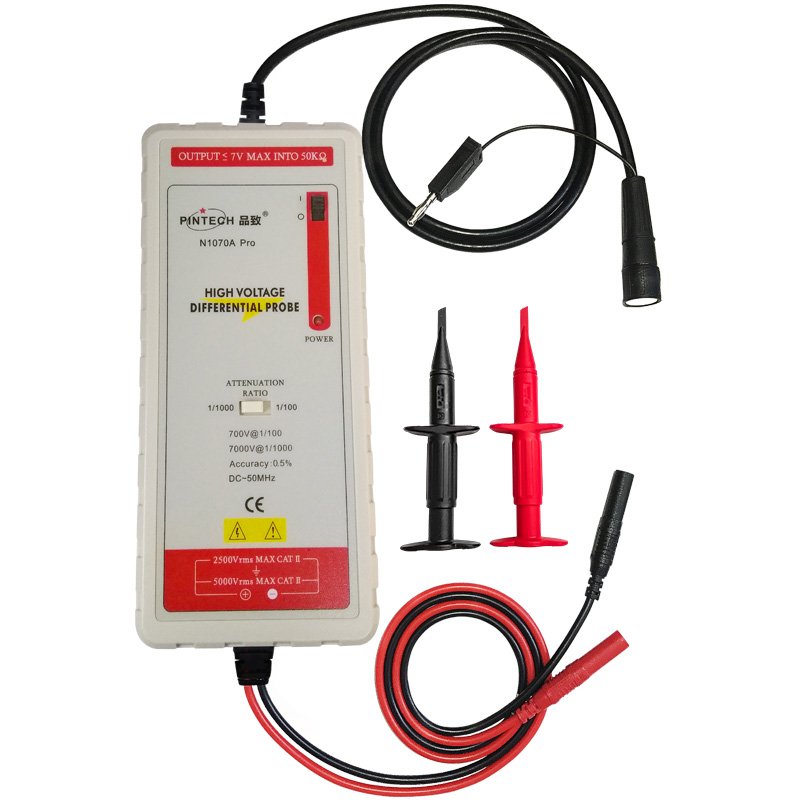

Pintech N1070A pro (50MHz,7KVp-p) 0.5% accuracy high voltage differential probe
|
±0.5% (50Hz~1KHz) accuracy .
Compatible with any brand's oscilloscope.
1% accuracy,compatible with any oscilloscope,standard BNC interface. 2 attenuation ratio range,easy to operating.
Battery & adaptor power supply.
|
|
Pintech N1070A pro Specification
| Model | N1070Apro | | Bandwidth | DC-50MHz | | Error | ±0.5% (50Hz~1KHz) | | Input impedance | 10MO//2 p F each side ground | | Output voltage | | -Swing(into 50 KO load) | 7V | | -Offset(typical) | <±5Mv | | -Input impedance(typical) | 50O(for using 1M ohm input system oscilloscope) | | Supply power | | -external | power leads | | BNC length | 90cm | | Test length | 60cm | | Weight | 500g | | Side (L×W×H) | 245x84x36mm | | Attenuation ratio | 1:1000/100 | | CMRR(typical) | -80dB@60Hz,-50d B@100KHz | | Maximum input differential voltage(Vp-p) | 7000V@1/1000, 700V@1/100 | | DC + Peak AC(Vp-p) | 7000V@1/1000 & 1/100 | | CMRR | 1000V rms CAT? |
|
|
