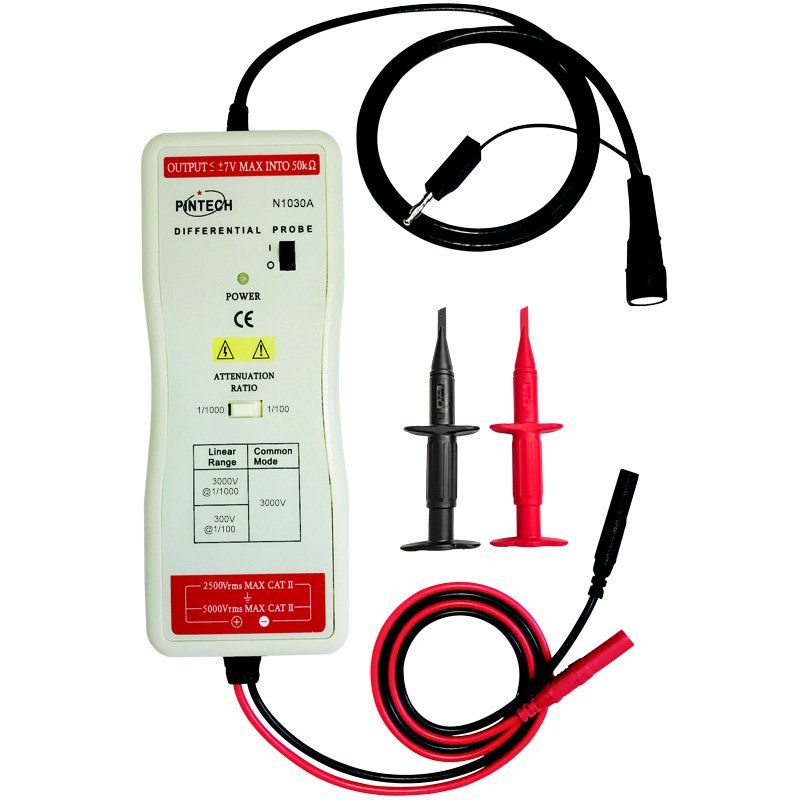

Pintech N1030A (3000Vp-p,50MHz) differential probe with 1% accuracy
|
Bandwidth : 100 MHz
Max. measuring voltage : 1500V DC,3000Vp-p AC
1% accuracy,compatible with any oscilloscope,standard BNC interface. 2 attenuation ratio range,easy to operating.
|
|
Pintech N1030A Specification
| Product Introduction | | Product Name | N1030A (3000Vp-p,50MHz) | | Short Description | PINTECH N1030A(50MHz X100 X1000 3000Vp-p) | | Specification | | Bandwidth | DC-50MHz | | Accuracy | ±1% | | Input Impedance | 4MO//2 p F each side ground | | Input Voltage | | -Swing(into 50 KO load) | ±7V | | -Offset(typical) | <±5Mv | | Typical | 50O(for using 1M ohm input system oscilloscope) | | Power Supply | | -Options | power leads | | Length of BNC Cable | 90cm | | Length of Input Leads | 60cm | | Weight | 500g | | (L×W×H) | | | Attenuation Ratio | 1:1000/100 | | CMRR(typical) | -80dB@60Hz,-50d B@100KHz | | maximum input differential-mode voltage(Vp-p) | 3000V@1/1000, 300V@1/100 | | Maximum input and ground potential difference(Vp-p) | 3000V@1/1000 & 1/100 | | (CMRR) | CATII 1000V,CAT? 600V |
|
|
