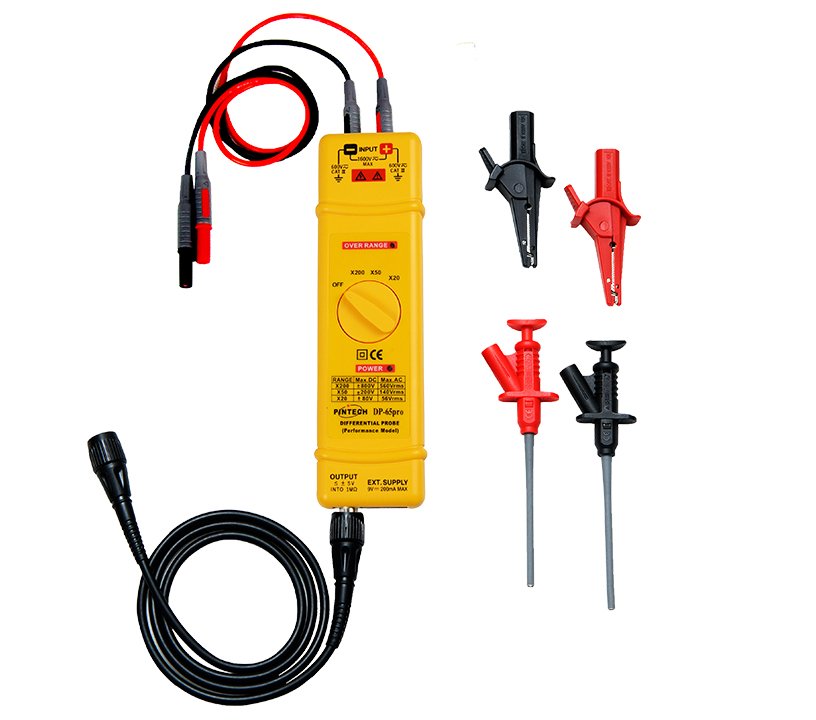

Pintech DP-65pro (65Mhz,1600Vp-p) active differential probe
|
Bandwidth : 65MHZ
Max. measuring voltage : 1600Vp-p,800V DC
Attenuation ratio : X20 X50 X200
Accuracy : 2%
|
|
Pintech DP-65pro Specification
| Model | DP-65PRO | | Bandwidth | DC-65MHz | | Division Ratio | X20,X50,X200 | | Accuracy | ±2%(heat the machine after twenty minutes) | | Input voltage range(Vp-p) | When X20, =160V | | When X50, =400V | | When X200, =1600V | | Differential range | 1600Vp-p | | Absolute max. voltage(CMRR) | 60Hz:>20000:1 | | 100Hz:>2000:1 | | 1MHz:>600:1 | | Noise | =0.7mVrms | | Input resistance(Impedance) | 18MO//1.2PF | | Max. Consumption | 9V/350mA | | volume | 195mm(L)X55mm(W)X30mm(H) | | Weight | 250g | | Fitting | BP-250,BP-256N,BP-276,BP-366,ADP-220 |
|
|
