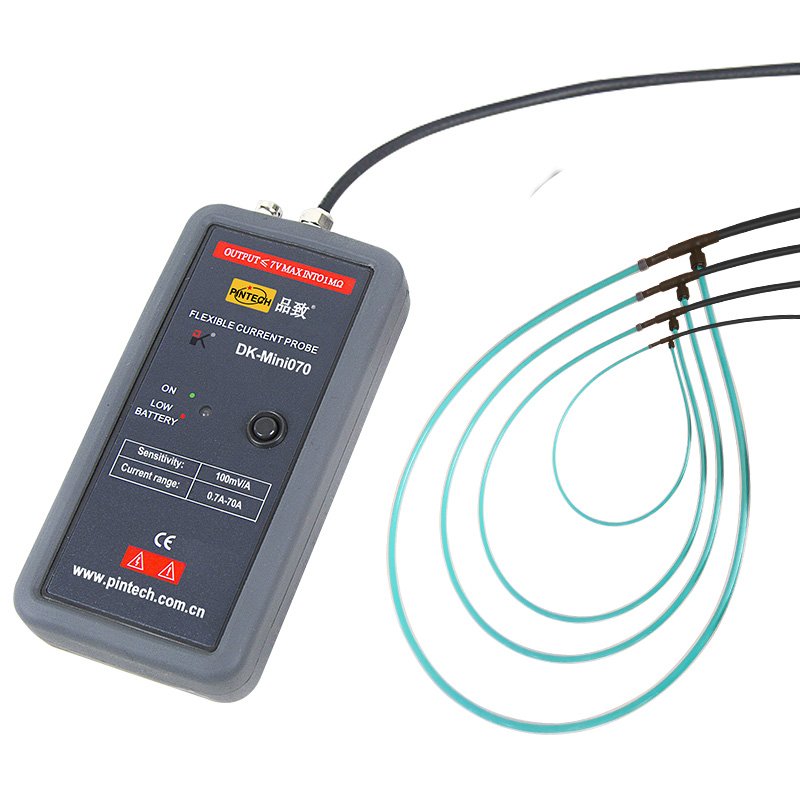

Pintech Flexible cureent probe DK flex models (Rogowski coil OEM for AC current)

This series flexible current probe is OEM item for you,we can manufacture the proper coil size for you at your request.Kindly check about the data table and choose the proper model or contact us and we will suggest you the proper item.

Pintech DK flex Specification

Model	SensitivitymV/A	Peak-PeakCurrent(A)	Min. Current( A)	Noise(mV Pk-Pk)	Bandwidth(3db)	Accuracy
High Sensitivity Ranges of DK flexible current probe
DK-Mini070	100	70	0.7	12	100Hz-4/8MHz	1%+2mV
DK-Mini140	50	140	1.4	12	100Hz-4/8MHz	1%+2mV
DK-Mini350	20	350	3.5	10	60Hz-4/8MHz	1%+2mV
Middle Sensitivity Ranges of DK flexible current probe
DK-0700	10	700	7.0	14	5Hz-6/10MHz	1%+3mV
DK-1400	5	1400	14	14	5Hz-15MHz	1%+3mV
DK-3500	2	3500	35	10	5Hz-15MHz	1%+2mV
DK-7000	1	7000	70	8	5Hz-15MHz	1%+2mV
DK-14000	0.5	14000	140	5	5Hz-15MHz	1%+2mV
Standard Ranges of DK flexible current probe
DK-35000	0.2	35000	350	5	5Hz-15MHz	1%+2mV
DK-70000	0.1	70000	700	5	5Hz-15MHz	1%+2mV
DK-140000	0.05	140000	1400	5	5Hz-15MHz	1%+2mV
DK-350000	0.02	350000	3500	5	5Hz-15MHz	1%+2mV
DK-2000	2	2000	35	10	50Hz-150KHz	2%

Feel free to contact us for any queries you may have.
