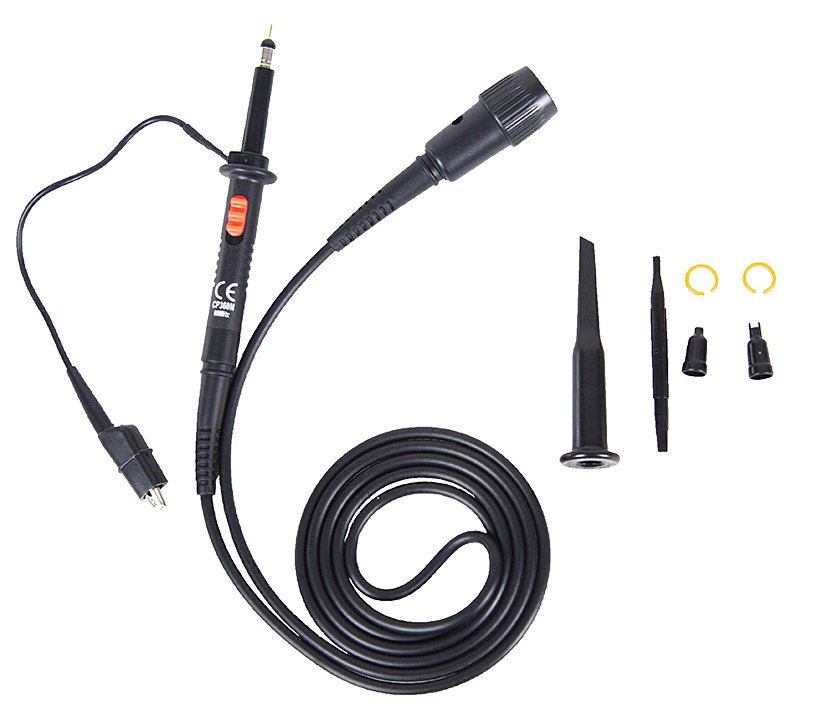

Pintech CP-360N (60MHz,600V) Oscilloscope Probe

Product Introduction
Product Name : CP-360N (60MHz,600V) Oscilloscope Probe Short Description : Max. Working Voltage : 400V dc 600V peak 200V rms Bandwidth : 60MHZ Division Ratio : X 1 , X 10 Switchable

Pintech CP-360N Specification

?10 Range
Model	CP-360N
10:1
Band Width	DC~60MHz
Rise Time	5.8nS
Input Resistance	10MO
Input Capacitor	About 16PF
Compensation Range	10~50PF
Operation voltage	600V DC+AC peak
?1 Range
Division Ratio	1:1
Band Width	DC~60MHz
Rise Time	58nS
Input Resistance	1MO
Input Capacitor	About 55PF
Operation Voltage	400V DC+AC peak or 200V rms
General
DC Accuracy	?1%
Temp. Coeicient	?200ppm/?
Cable Length	1.2M
Operating Voltage	0?~+50? or less 85%RH(35?)
Storage Temp.	-20?~+70? less than 90%RH
Weigh	70g
