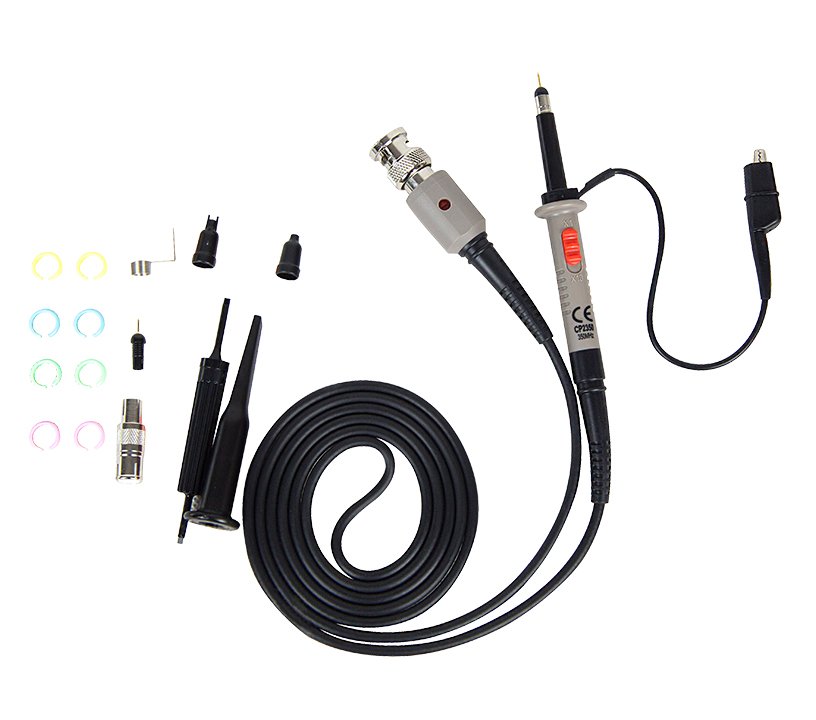

Pintech CP-2350 (350MHz,600V) Oscilloscope Probe
|
Product Introduction
Product Name : CP-2350 (350MHz,600V) Oscilloscope Probe
Short Description : Bandwidth : 350MHz
X1, X10, Switchable
|
|
Pintech CP-2350 Specification
| х10 Range | | Division Ratio | 10:1 | | Band Width | DC~350MHz | | Rise Time | 1.0nS | | Input Resistance | 10MΩ | | Input Capacitor | About 16PF | | Compensation Range | 10~35PF | | Operating Voltage | 600V DC+AC peak | | х1 Range | | Division Rtio | 1:1 | | Band Width | DC~6MHz | | Rise Time | 58nS | | Input Resistance | 1MΩ | | Input Capacitor | About 46PF | | Operating Voltage | 600V DC+AC peak （When it comes to use, limit the max. input voltage to 400 v DC + AC peak of the oscilloscope） | | General | | DC Accuracy | ≦1% | | Temp.Coefficient | ≦200ppm/℃ | | Cable Length | 1.2M | | Operating Temp. | 0℃~+50℃ less than 85%RH（35℃） | | Storage Temp. | -20℃~+70℃ less than 90%RH | | Weight | 93g |
|
|
