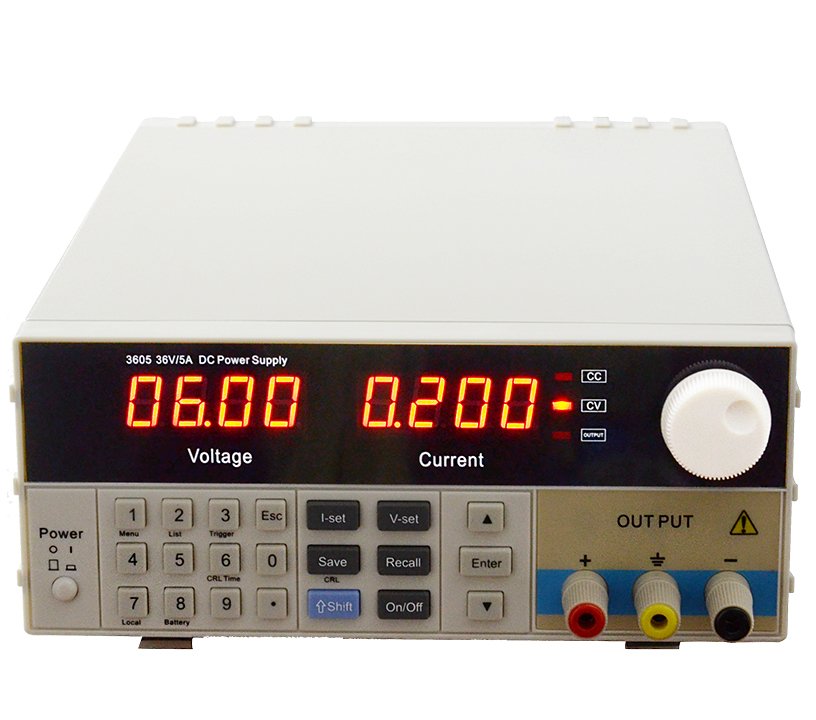

Pintech PA2605 programmable dc power supply (36V/5A)

PA2600 series DC power supply is a new generation of high-quality programmable DC power supply,this series of products can be equiped with communication interface.This series features both table and system-type,it can be arbitrary with other instruments,integrated as a special function test system to meet different testing needs,through the panel keyboard editing program,bring great convenience to the user,can replace normal programmable power supply.It’s a good performance with low cost item.

Pintech PA2605 Specification

Model		PA2605 36V/5A
Rated input voltage		AC220V/110V±5%
Rated output voltage		0-36V
Rated output current		0-5A
Swing mode		Linear power supply
Load adjustment rate	Voltage	<0.02%+3mV
Load adjustment rate	Current	<0.02%+3mA
Power regulation rate	Voltage	<0.02%+3mV
Power regulation rate	Current	<0.02%+3mA
Set value resolution	Voltage	10mV
Set value resolution	Current	1mA
Set value accuracy	Voltage	=0.02%+2bytes
Set value accuracy	Current	=0.02%+2bytes
Read-Back value resolution	Voltage	10mV
Read-Back value resolution	Current	1mA
Read-Back value accuracy	Voltage	=0.2%+2bytes
Read-Back value accuracy	Current	=0.2%+2bytes
Temperature	Operation	0 to 40 ? = 85 R.H.
Temperature	Storage	-15 to 70 ? = 85 R.H
Size (WHD(mm))		214108305
Weight (net)		5.2Kg
