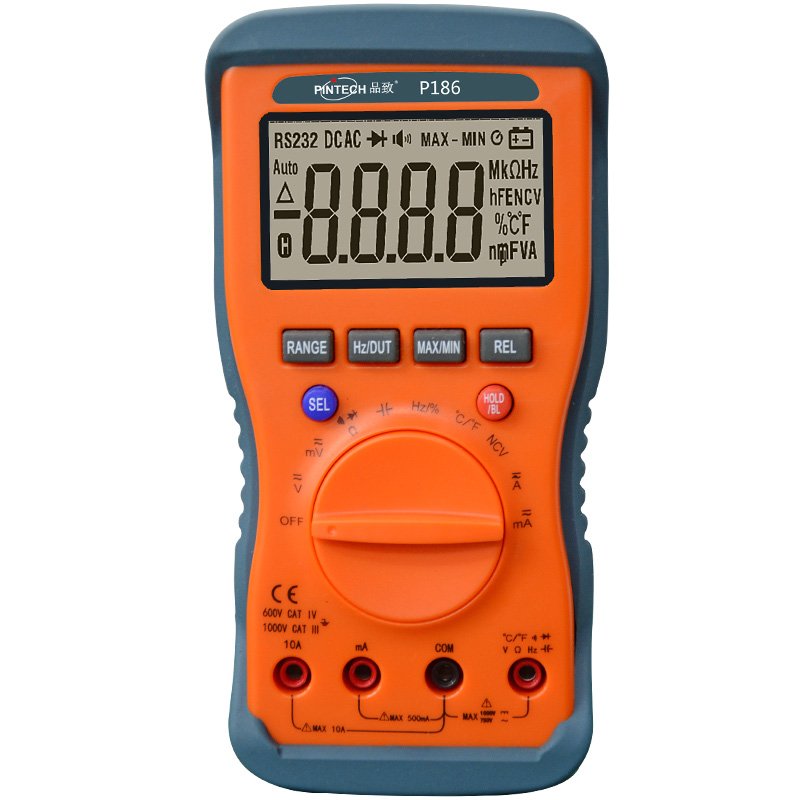

Pintech Digital Multimeter (DMM) P186 (1000V/10A)

DC 100V,10A,AC 750V,10A.2 in 1 : multimeter + temperature meter.3 (5/6) -digit counterparts. NCV supportive. Ture RMS measurement. Relative Measurement,etc.

Pintech P186 Specification

P186 specification
		Range	Resolution	Accuracy
DC Voltage	mV	60mV/600mV	0.1mV	±(0.5%+2dig)
DC Voltage	V	6V/60V/600V/1000V	1V	±(0.8%+2dig)
AC Voltage	mV	60mV/600mV	0.1mV	±(0.8%+2dig)
AC Voltage	V	6V/60V/600V/750V	1V	±(1%+3dig)
DC Current	mA	60mA/600mA	0.01mA	±(0.8%+2dig)
DC Current	A	10A	0.01A	±(1.2%+3dig)
AC Current	mA	60mA/600mA	0.01mA	±(1%+3dig)
AC Current	A	10A	0.01A	±(1.5%+3dig)
Resistance		600O/6KO/60KO/600KO/6MO	0.1O	±(0.8%+2dig)
Resistance		60MO	0.01MO	±(1.5%+3dig)
Capacitance		9.999nF/99.99nF/999.9nF/9.999µF	1nF	±(2.5%+3dig)
		9.999µF/99.99µF/999.9µF	1uF	±(3%+3dig)
		999.9µF~99.99mF	10µF	±(5%+3dig)
Temperature		-20?~1000?	1?	±(3%+3dig)
Temperature		-4?~1832?	1?	±(3%+3dig)
Frequency		9.999Hz/99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz	0.01Hz	±(0.8%+2dig)
Duty Ratio(=10KHz)		1%~99%	0.10%	±(2%+3dig)
Working voltage		3V
Range selection		v
Max. Min. reading		v
Relative Measurement		v
NCV		v
Auto power-off		v
LCD Backlight		v
Data hold		v
On-off Warning		v
Diode test		v

Feel free to contact us for any queries you may have.
