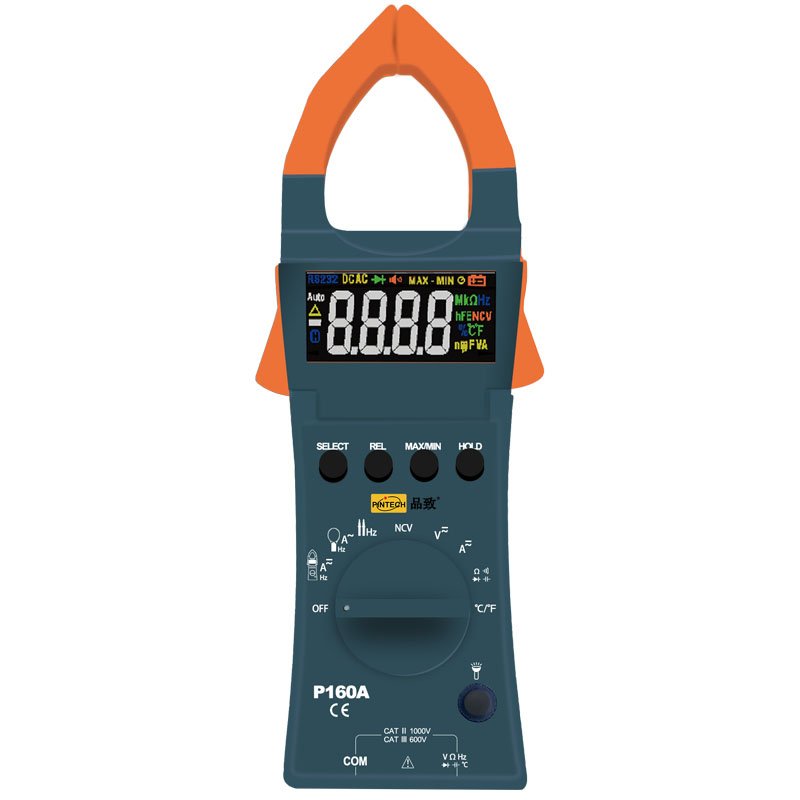

Pintech P160A/B Flexible coil) (600A,1000V) High Precision Digital Clamp Meter

The first double open clamp meter in China, high precision, high safety, automatic range hand-held current and voltage clamp meter,measuring 600A, 1000V DC, 600V AC, can extend testing the frequency, resistance, diode, capacitance, comes with color LED Display, the display can achieve first-level flip 22 °, second-level flip 40 °, data reading is more convenient and intuitive; 4-digit display, jaw diameter 40mm, can meet most signal tests. Flexible coils (about 3.5mm wire diameter and coil circumference about 300mm) can be customized to specifically test AC current signals to meet the testing

Pintech P160A/B Specification

Function	Range	Resolution	Accuracy
AC current for clamp meter(auto range)	0-60A	0.01A	2.5%+2mV
AC current for clamp meter(auto range)	60-600A	0.1A	2.5%+2mV
AC frequency of Clamp meter	40-400Hz
DC current for clamp meter(auto range)	0-60A	0.01A	2.5%+2mV
DC current for clamp meter(auto range)	60-600A	0.1A	2.5%+2mV
AC flexible current probe(auto range)	2-600A	0.1A	2.5%+2mV
AC Frequency for flexible coil	50-1000Hz
DC voltage for probe(auto range)	60mV-600mV	0.1mV	±(0.5%+2dig)
DC voltage for probe(auto range)	6V-1000V	1V	±(0.8%+2dig)
AC voltage for probe(auto range)(40-1000Hz)	60mV-600mV	0.1mV	±(0.8%+2dig)
AC voltage for probe(auto range)(40-1000Hz)	0-600V	1V	±(1%+3dig)
Temperature	-20?~1000?	1?	±(3%+3dig)
Resistance	-4?~1832?	1?	±(3%+3dig)
Resistance(auto range)	60MO	0.01MO	±(1.5%+3dig)
Capacitance(auto range)	9.999nF-99.99µF	0.01nF	±(2.5%+3dig)
Capacitance(auto range)	999.9µF-99.99mF	0.1µF	±(5%+3dig)
Frequency	9.999Hz-9.999MHz	0.01Hz	±(0.8%+2dig)
Non-contact voltage measurement	v
On-off warning	v
Data holding	v
Relative value measurement	v
Lighting	v

Feel free to contact us for any queries you may have.
