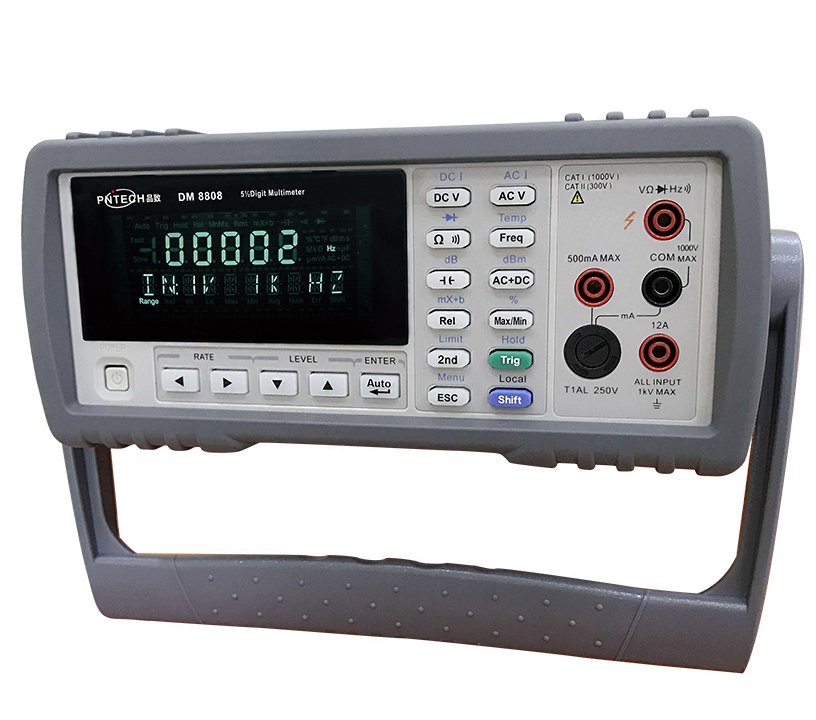

Pintech DM 8808 Digital Multimeter with multi-function
|
DM8808 5 1/2 digit multimeter is a multi-functional, cost-effective voltage/current/resistance/capacitance meter. It provides Max. 120000 count, Max. sampling rate 200 times/s, 0.012% DCV accuracy ,etc, which is the optimal selection for users.DM8808 provides high brightness VFD Dual-display, which can display ACV/DCV or DCI, ACV/ACI and frequency .etc to improve the test efficiency and, clearer display.DM8808 is configured with USB interface, and also communication software is provided for PC communication, data analysis, statistics, building system. DM8808 accepts SCPI command to be compatib
|
|
Pintech DM 8808 Specification
| Test parameter | DCV, ACV, DCI, ACI, DCR, CP, FREQ, CONT, DIODE, TEMP | | Mathematicsfunction | %?dB?dBm?REL?mX+b | | Range | Auto, Manual | | Display | High brightness VFD dual-display | | Trigger Mode | INT/BUS/EXIT | | Reading Hold | To find out best stable reading for eachdata block of the given reading numberaccording to the given accuracy. | | Limitationmeasurement | To judge HI,IN,LO and display, with ALARM for HI/LO | | Calibration | Auto, Manual | | External Trigger | Handle interface (external trigger andoutput sorting signal) | | Communicationinterface | SCPI command support for RS232 andUSB interface | | Performance parameter expression of uncertainty:±(% of reading+% of full scale) | | Reading rate(reading/s) | | Reading rate | Fast | Slow | | 4 1/2 | 5 1/2 | 4 1/2 | 5 1/2 | | DCV/DCI | 80 | 15 | 15 | 4 | | ACV/ACI | 80 | 15 | 15 | 4 | | O | 80 | 15 | 15 | 4 | | DC voltage(DCV) | | Range | Min.Resolution | Max.Uncertainty(1 year) | | 100mV-1000V | 1µV | 0.012%+0.008% | | DC current(DCI) | | Range | Min.Resolution | Max.Uncertainty(1 year) | | 1mA-100mA | 10nA | 0.05%+0.005% | | 1A | 10µA | 0.10%+0.008% | | 10A | 100µA | 0.20%+0.006% | | AC voltage(ACV) | | Range | Frequency | Min.Resolution | Max.Uncertainty(1 year) | | 100mV-750V | 20Hz-50Hz | 1µV | 1.00%+0.1% | | 50Hz-10kHz | 0.20%+0.08% | | 10kHz-30kHz | 0.80%+0.08% | | 30kHz-100kHz | 3.00%+0.2% | | Range | Frequency | Min.Resolution | Max.Uncertainty(1 year) | | 1mA -10A | 20Hz-50Hz | 10nA | 1.0%+0.08% | | 50Hz-2kHz | 0.5%+0.08% | | 2kHz-10kHz | 2.0%+0.18% | | Resistance | | Range | Min.Resolution | Max.Uncertainty(1 year) | | 100O-1MO | 10µO | 0.05%+0.008% | | 10MO | 100O | 0.20%+0.008% | | 100MO | 1kO | 2.00%+0.005% | | Capacitance | | Range | Min.Resolution | Max.Uncertainty(1 year) | | 1nF | 1pF | 2%+0.8% | | 10nF-1000uF | 10pF | 1.0%+0.5% | | 10000uF | 1uF | 2%+0.5% | | Frequency | | Range | Voltagesensitivity | Min.Resolution | Max.Uncertainty(1 year) | | 1Hz-1MHz | 40mVrms | 10µHz | 0.005%+0.003% | | Temperature | | Range | Probe type | Min.Resolution | Max.Uncertainty(1 year) | | -10?-100? | PT500 | 0.1? | Probe accuracy±0.2? | | Uncertainty is not assured if the temperature is out of the range | | Upper frame dimension(mm) | 215(W)x 88(H)x 335(D) | | Exterior dimension(mm) | 235(W)x 105(H)x 360(D) | | Net weight | 2.5 kg |
|
|
