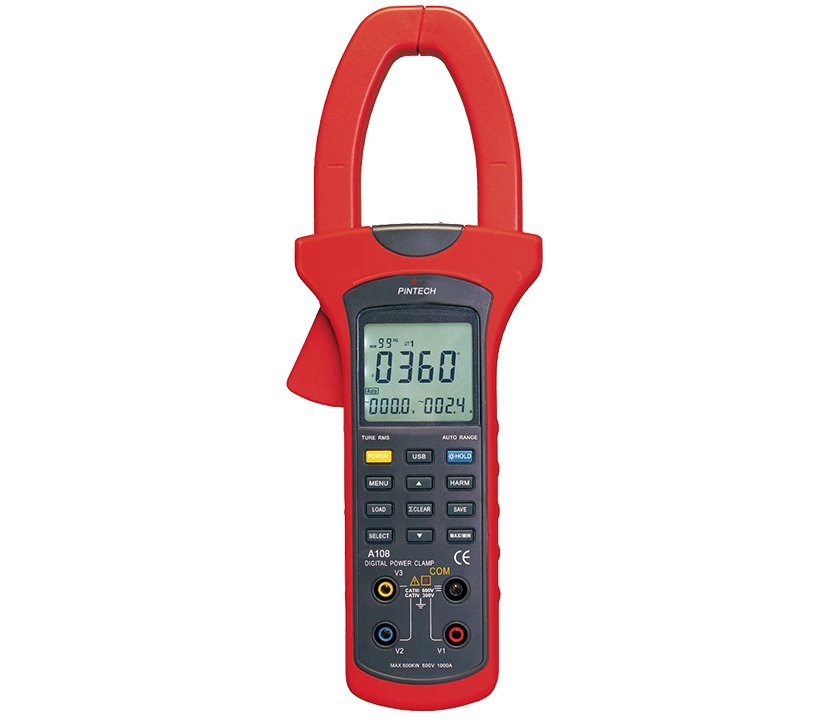

Pintech A108 1000A Power and Harmonics Clamp Meters

Product Introduction
Product Name : A108 1000A Power and Harmonics Clamp Meters Short Description : Model Number : A108 Max. current : 1000A Display Count : 9999 Jaw Capacity : 50mm

Pintech A108 Specification

Specifications	Range		Best Accuracy
Model	A108
AC Current (A)	50A/250A/1000A		±(2%+5)
AC Voltage(V)	150V/300V/600V		±(1.2%+5)
Frequency(Hz)	50Hz~60Hz		v
Active Power (W)	0.01KW-600KW		±(3%+5)
Apparent Power (VA)	0.01KVA~600KVA		±(3%+5)
Reactive Power (VAr)	0.01KVAr~600KVAr		±(4%+5)
Power Factor	0.3~1		±(1%+2)
Phase Factor (°)	0° ~ 360°		±1°
Active Energy (Wh)	1~9999KWh		±(3%+5)
Features
Display Count	9999
Auto Range			v
Jaw Capacity	50mm
True RMS			v
Auto Power Off			v
Low Battery Indication			v
Data Hold			v
MAX/MIN			v
Data Storage	999
USB Interface			v
LCD Backlight			v
Full Icon Display			v
Harmonic Analysis	1-20
Setup			v
Single-Phrase 2-Wires			v
3—Phrase3-Wires			v
3—Phrase4-Wires			v
Phase Sequence Test			v
Auto Calibration			v
Input Impedance for DCV	=10MO		v
Input Protection			v
General Characteristics
Power		1.5V Batteries (5?) ×4
LCD Size		46mm X 42mm
Product Color		Red and Grey
Product Net Weight		601g
Product Size		303mm X 112mm X39mm
Standard Accessories		Battery ,Test Lead,Aligator Cilp,Tool box , Testing wire
Standard Individual Packing		Gift Box ,Carrying Bag,English Manual
Standard Quantity Per Carton		5PCs
Standard Carton Measurement		480mm X 372mm X 315mm
Standard Carton Gross Weight		12Kg
