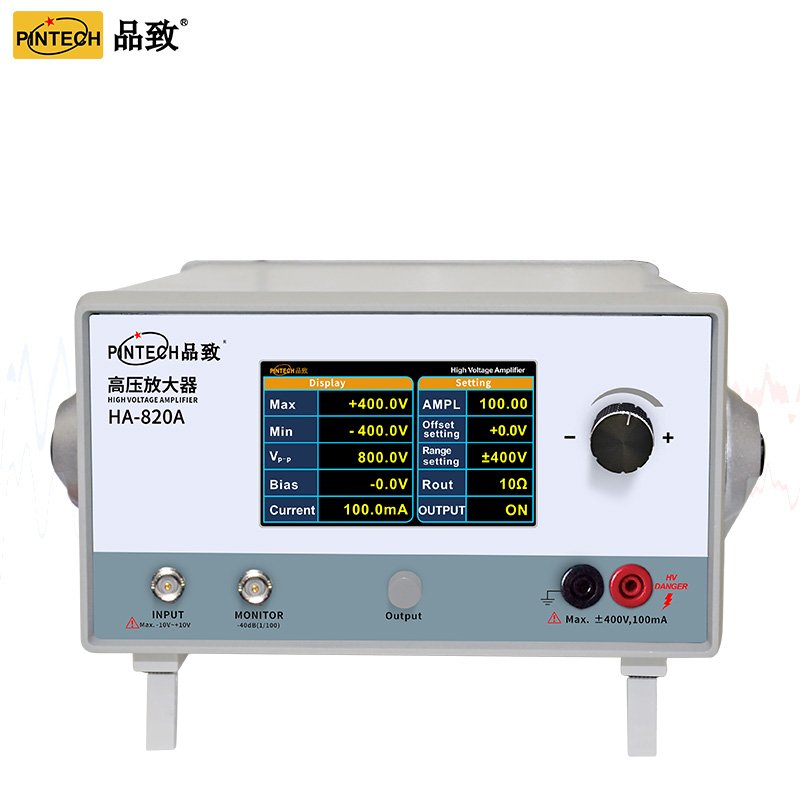

Pintech HA-820A (400kHz,800V) Digital Display High Voltage Amplifier

Digital display high voltage amplifier. AMPL times,current,voltage are diplayed on the pannel. It also add more protection design. More humanize,practical.

Pintech HA-820A Specification

Model	HA-820A
Output DC Voltage(Max.)	400V DC
Output AC Voltage(Max.)	800Vp-p
Output DC Current(Max.)	100mA DC
Output AC Current(Max.)	200mAp-p
Output Power(Max.)	40 VA
Bandwidth	DC-400kHz(-3dB)
Slew rate(Typ.)	500V/us
Output Resistance (Protection SW OFF)	10O
Output Resistance (Protection SW ON)	5kO/40watt
Max. Loading value	4kO@Range±400V;2.5kO@Range±250V
Input (normal/Max.)	±5V(Max.±10V)
