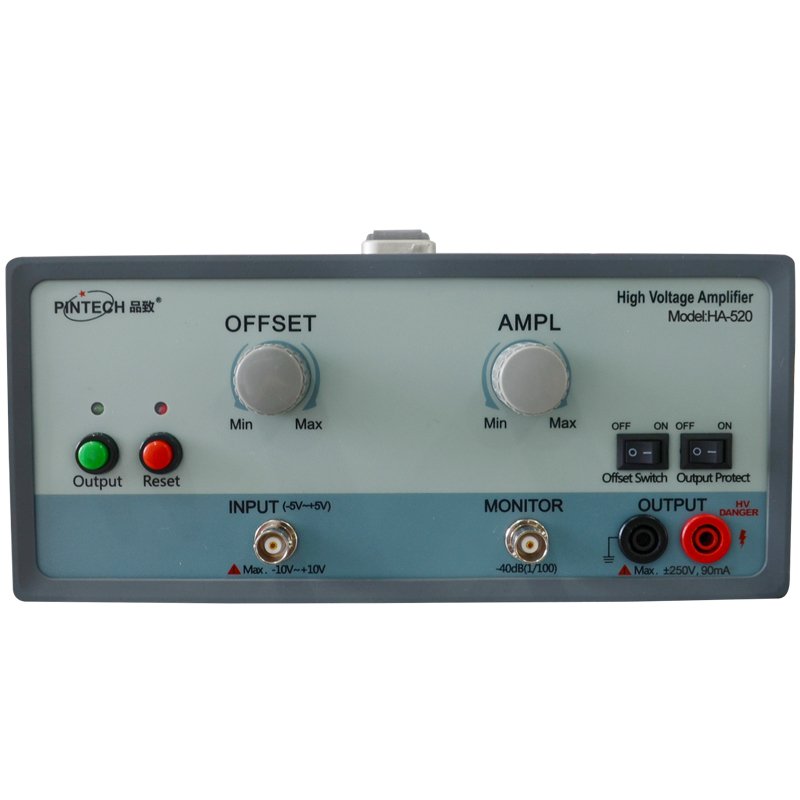

Pintech HA-520 (200KHz,500Vp-p) high voltage probe amplifier

Ouput special fuse,protection switch,Microcomputer control overload protection. Very suitable for different industries for : Semiconductor High Voltage Driver,TFT Field High Voltage Driver,High Voltage Engineering,MEMS Engineering,Nano Technology,PZT Driver,Static Charge Engineering, Bio-medical Engineering It is also used for Audio Signal Generator and Function Generator Amplifier.

Pintech HA-520 Specification

MODEL	HA-520
Output DC Voltage(Max.)	250V DC
Output AC Voltage(Max.)	500Vp-p
Output DC Current(Max.)	90mADC
Output AC Current(Max.)	180mAp-p
Output Power(Max.)	22.5 VA
Power Bandwidth	200KHz/250Vp-p
Slew Rate	300V/us
Output Resistance (Protection SW OFF	100O
Output Resistance (Protection SW ON)	5KO/30Watt
Safe Loading	0~10Vp-p/20Vp-p
Voltage Gain	0~100 (10 turns)
DC OFFSET	0~ ± 250V(10turns+switch)
Output monitor	100:1
