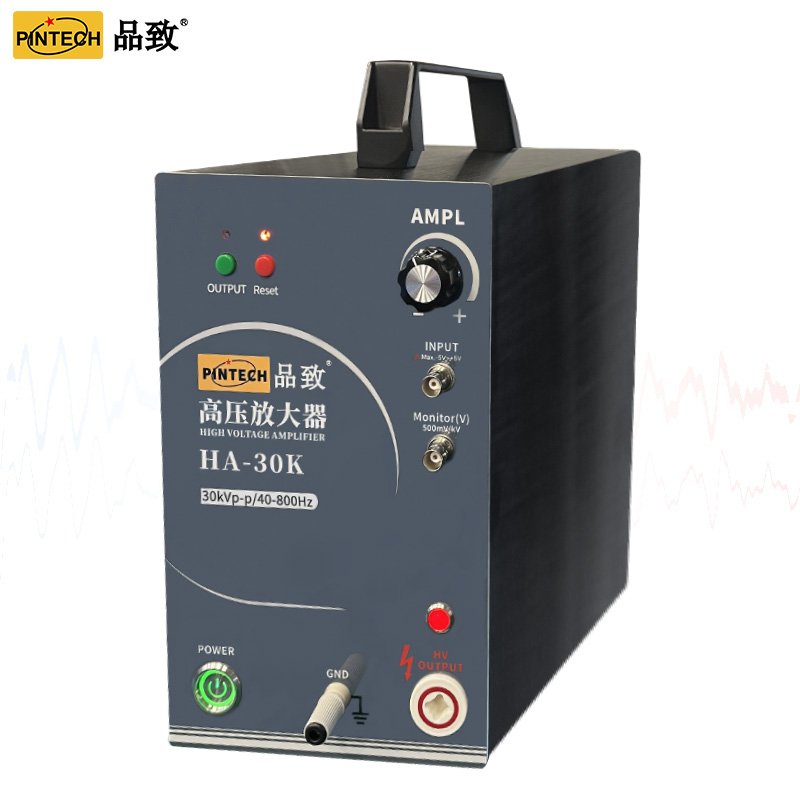

Pintech HA-30K (40Hz-800Hz,30kVp-p) Digital display high voltage amplifier

Pintech HA-30K

Pintech HA-30K Specification

Model	HA-30K
Output AC voltage	30kVp-p
Output AC voltage	15mAp-p
Output Power	112 VA
Output bandwidth	40Hz-800Hz
Slew Rate	50V/us
Input voltage Uper limit	±5V(Max.±10V)
AMPL times	3000
Monitor	2000:1
Output noise	20Vp-p
Power consumption	600WATT
Operating temperature and humidity	0~40℃;0~80%RH
Store at temperature and humidity	-20~60℃;0~90%RH
Dimension	160x263x332mm
Weight	9.85kg
