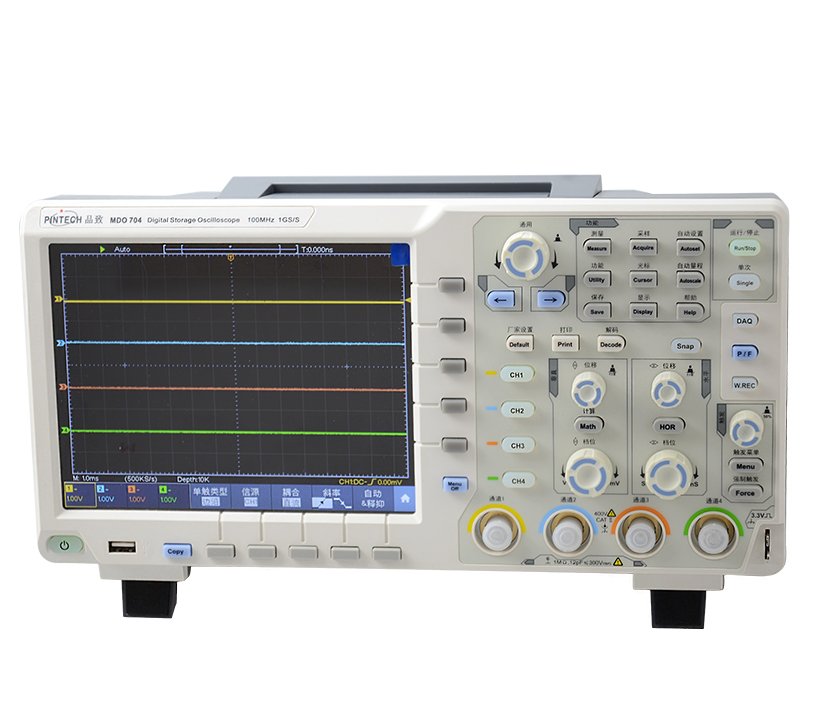

Pintech MDO 704 4 channels (100MHz,1GS/s) digital oscilloscope
|
+ 40M record length 45,000 wfms/s waveform refresh rate
+ waveforms storage and replay function available
+ muti-level gray scale and color temperature display.
+ optional multi-point touch screen, more user-friendly operation experience
+ 8 inch 800 x 600 high resolution LCD
+ muti trigger type and bus decoding function
+ SCPI communication function, labview communication function
|
|
Pintech MDO 704 Specification
| Model | MDO704 | | Bandwidth | 100MHz | | Sample Rate | 1GS/s | | Vertical Resolution(A/D) | 8bits | | Record length | 40M | | Waveform refresh rate | 45,000 wfms/s | | Horizontal Scale (s/div) | 2ns/div - 1000s/div, step by 1 - 2 - 5 | | Rise time(BNC typical) | =3.5ns | | Channel | 4 | | Display | 8" color LCD, 800 x 600 pixels TFT LCD,muti trigger type | | Input impedance | 1MO±2%,and 15pF±5pF parallel | | Channel Isolation | 50Hz : 100 : 1, 10MHz : 40 : 1 | | Max. Input voltage | 1MO = 300Vrms; | | DC gain accuracy | ±3% | | DC accuracy (average) | average=16:±(3% +0.05div) for ?V | | Probe attenuation factor | 0.001X - 1000X, step by 1 - 2 - 5 | | LF response(AC,-3Db) | =5Hz(BNC) | | Sample rate/relay time accuracy | ±1ppm | | Interpolation | (sinx) / x,x | | Interval(?T) accuracy(full bandwidth) | Single : ±(1 sample interval time+1ppm x reading+0.6ns); average>16:±(1sample interval time+1ppm x reading+0.4ns) | | Input coupling | DC, AC, GND | | Vertical sensitivity | 1mV/div - 10V/div (at input) | | Trigger Type | Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional) | | Bus Decoding(optional) | I2C, SPI, RS232, CAN | | Trigger mode | auto, normal, single | | Vertical range | ±2V(1mV/div~50mV/div);±20V(100mV/div~1V/div);±200V(2V/div~10V/div) | | Line / field frequency(Video) | NTSC,PAL and SECAM standard | | Cursor measurement | Voltage difference between cursor(?V),time difference between cursor(?T),Voltage difference between cursor(?V)and time difference between cursor(?T),auto cursor | | Auto measurement | Vp-p,Vavg,Vrms,Freq,Period,Week RMS,Cursor RMS,Vmax,Vmin,Vtop,Vbase,Vamp,Overshoot,phase,Preshoot,rise time,fall time,+width,-width,+duty,-duty,duty cycle,delay A?B?,delay A?B?,+Pulse count,rise edge count,fall edge count | | Waveform Math | +, -, ×, ÷, FFT | | Waveform storage | 100sets | | Lissajous figure | bandwidth | Full bandwidth | | Phase difference | ±3 degrees | | Connector | USB, Pass/Fail, LAN, VGA(optional) | | Frequency counter | available | | Power supply | 100V - 240V AC, 50/60Hz, CAT II | | Fuse | 2A, T class, 250V | | Battery (optional) | 3.7V, 13200mA | | Dimension | 340mm(L)x177mm(H)x90mmW) |
|
|
