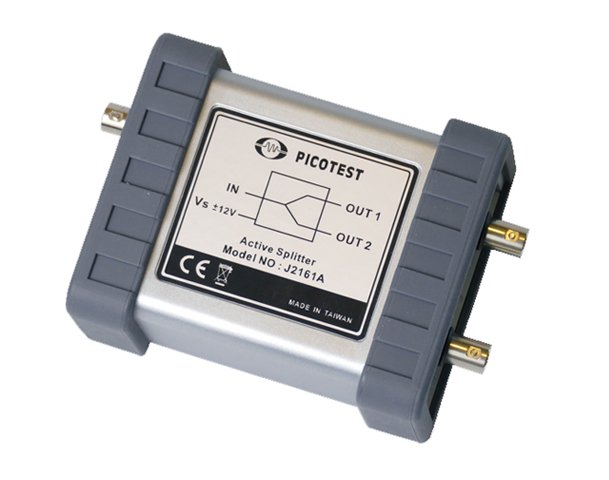

Picotest J2161A Features

• J2161A/J2102B enables Gold-Standard 2-port shunt-through Power Distribution Network Impedance measurement on oscilloscopes
• 100Hz – 500MHz typical measurement bandwidth, Impedances down to 1mohm
• Works with oscilloscopes – Tektronix Series 5/6 with FRA features (requires 5-PWR or 6-PWR software), Rohde & Schwarz, Keysight, Siglent, etc.

Introduction

Now you can perform the “Gold Standard” PDN measurement on the Tektronix Series 6 oscilloscope. The 2-port shunt-through impedance measurement is enabled by the Picotest J2161A Active Splitter, along with either a J2102B Common Mode Transformer or a J2113A Differential Amplifier (for ground loop breaking). The combination of these two injectors (splitter and transformer) allows you to measure low impedances over frequency down to 1mohm covering a bandwidth of 100Hz to over 500MHz. The bandwidth of the measurement is dependent on the scope’s capabilities.
