Professional and portable performance at low cost

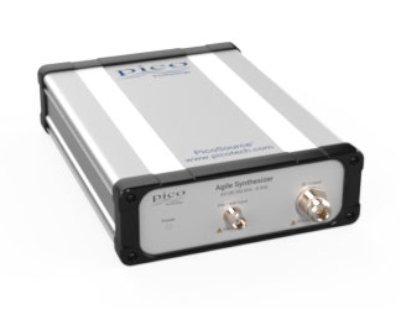

The PicoSource™ AS108 Agile Synthesizer generates signals to meet the needs of both benchtop and integrated module applications. Its broad 300 kHz to 8 GHz frequency range, fast settling and programmable phase, frequency and amplitude match it to a wide range of applications, with the added advantages of low cost, small footprint and 12 to 15 V power requirement.

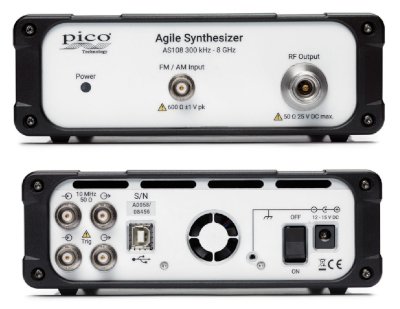

The AS108 has professional-grade performance that is effective in both static and parameter-agile applications, making it a bench or field instrument for developers, scientists, educators, students, and service and installation technicians. Its speed, external clock referencing, trigger capabilities and user-programmable power-up mode all suited to system integrations such as automated test, unmanned installations and multi-signal stimulus.

The AS108 is a full-function USB-controlled vector (IQ) modulating signal synthesizer. It is supplied with a clean, easy and efficient user interface for controlling its amplitude, frequency and phase agility; including modulations, sweeps, hopping and list modes from Microsoft Windows. Multiple synthesizers can be controlled from multiple instances of the software running on a single controlling PC or device. Remote control is also possible using the API included.

For Pricing Information

(All trademarks acknowledged) E. & O. E.

Remote control operation

The PicoSource AS108 is supplied with a DLL that allows you to control the device from C and C-compatible languages and applications such as C++, C#, Python, Keysight VEE, National Instruments LabVIEW and MathWorks MATLAB.

Multiple device operation

You can control multiple AS108 signal synthesizers from a single PC by running multiple instances of the PicoSynth 2 software. Each time you start a new instance of PicoSynth 2, it will list all compatible connected devices that are not yet being controlled. You can then select any device in the list for connection.

PicoSrouce^TM AS108 - Features

• 300 kHz to 8 GHz operation
• –15 dBm to +15 dBm dynamic range
• Fast 55 µs frequency settling time to 10 ppm
• Fast amplitude settling: < 25 µs to 1 dB and < 200 µs to 0.1 dB
• Sweep, hop and list of frequency and level or list phase and level
• -100 dBc/Hz phase noise typical at 1 GHz and 10 kHz offset

Ask for PicoTech PicoSrouce^TM AS108 detailed specification.
