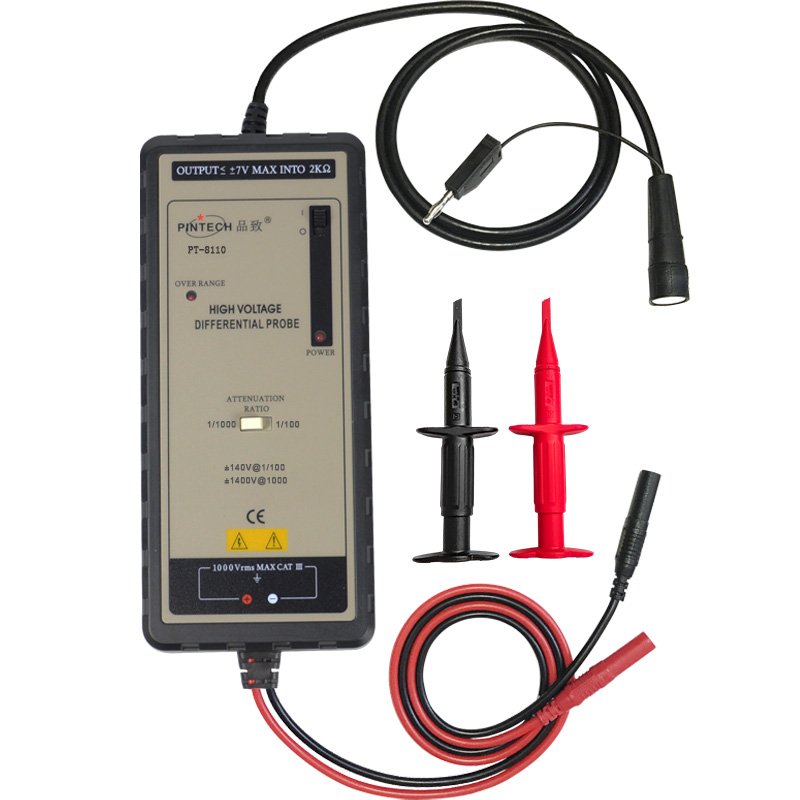

Pintech PT-8110 (1400Vp-p,100MHz) differential probe

Pintech PT-8110



Model : PT-8110 Bandwidth : 100MHZ Input Max.Voltage : 1400V Attenuation : 1 : 100/1000 Accuracy : ±2% Power supply : battery and power adaptor compatible with any oscilloscope,standard BNC interface.

Pintech PT-8110 Specification

Specification PT-8110
Bandwidth 100MHz
Accuracy ±2%
Input Impedance 4MO//2 p F each side ground
Output Voltage
-Swing(into 50 KO load) ±7V
-Offset(typical) <±5Mv
-Source Impedance(typical) 50O
Power Requirements
-Standard 4×AA cells or 6V DC adaptor
-Options power leads
Length of BNC Lead 90cm
Length of Input Leads 60cm
Weigh 500g
Dimension(L×W×H) 186mm×83mm×38mm
Model PT-8110
Attenuation Ratio 1:100/1000
CMRR(typical) -80dB@60Hz,-50d B@100KHz
Differential Input Voltage(Vp-p) 140@1/100, 1400@1/1000
Common Mode Voltage(Vp-p) 1400V@1/100 & 1/1000
Absolute Max .Input(Each side to ground) CATII 1000V,CAT ? 600V
Features ·Bandwidth up to 100MHz·Up to 1400Vp-p Differential and Common Mode·Safety Certified
Applications ·Switching Power Supply Design·Motor Drive Design·Electronic Ballast Design·CRT Display Design
