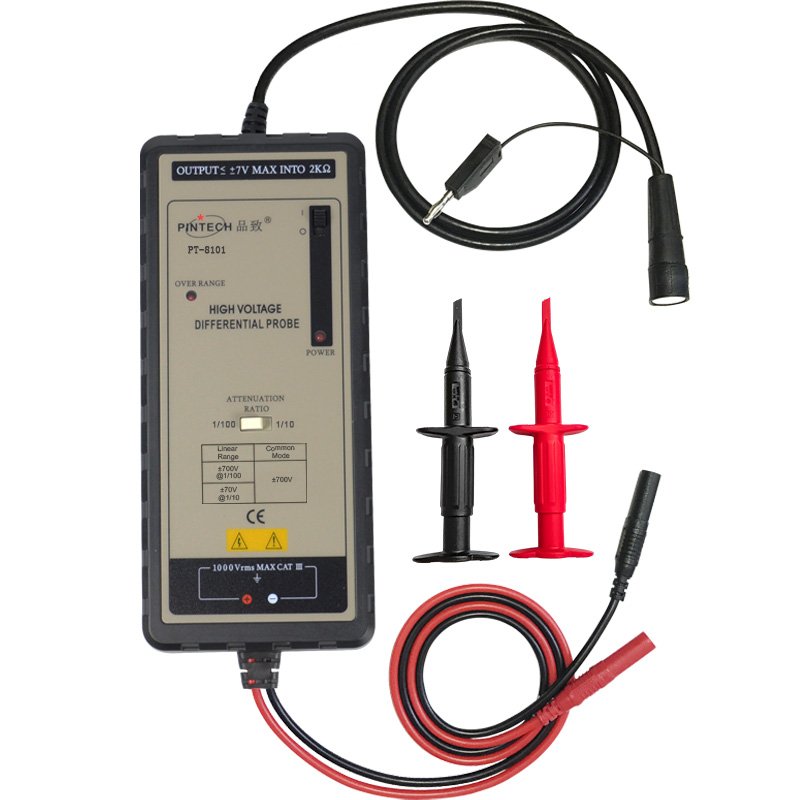

Pintech PT-8101 (700Vp-p,100MHz) differential probe

Pintech PT-8101



PT-8101 (700Vp-p,100MHz) Differential probe Bandwodth : 100MHz Attenuation ratio : X10 ,X100 Max. Measuring voltage : 700V Power supply : battery and power adaptor Accuracy : 2% compatible with any oscilloscope,standard BNC interface.

Pintech PT-8101 Specification

PT-8101 Specifications
Bandwidth 100MHz
Accuracy ±2%
Input Impedance 2MO//2.5p F each side ground
Output Voltage
-Swing(into 50 KO load) ±7V
-Offset(typical) <±5Mv
-Source Impedance(typical) 50O
Power Requirements
-Standard 4×AA cells or 6V DC adaptor
-Options power leads
Length of BNC Lead 90cm
Length of Input Leads 60cm
Weigh 500g
Dimension(L×W×H) 186mm×83mm×38mm
Model PT-8101
Attenuation Ratio 1:10/100
CMRR(typical) -80dB@60Hz,-50dB@100KHz
Differential Input Voltage(Vp-p) 70V@1/10, 700V@1/100
Common Mode Voltage(Vp-p) 700V@1/10 & 1/100
Absolute Max .Input(Each side to ground) CATII 1000V,CAT ? 600V
Features ·Bandwidth up to 100MHz·Up to 1400V(Vp-p)Differential andCommon Mode·Safety Certified
Applications ·Switching Power Supply Design·Motor Drive Design·Electronic Ballast Design·CRT Display Design
