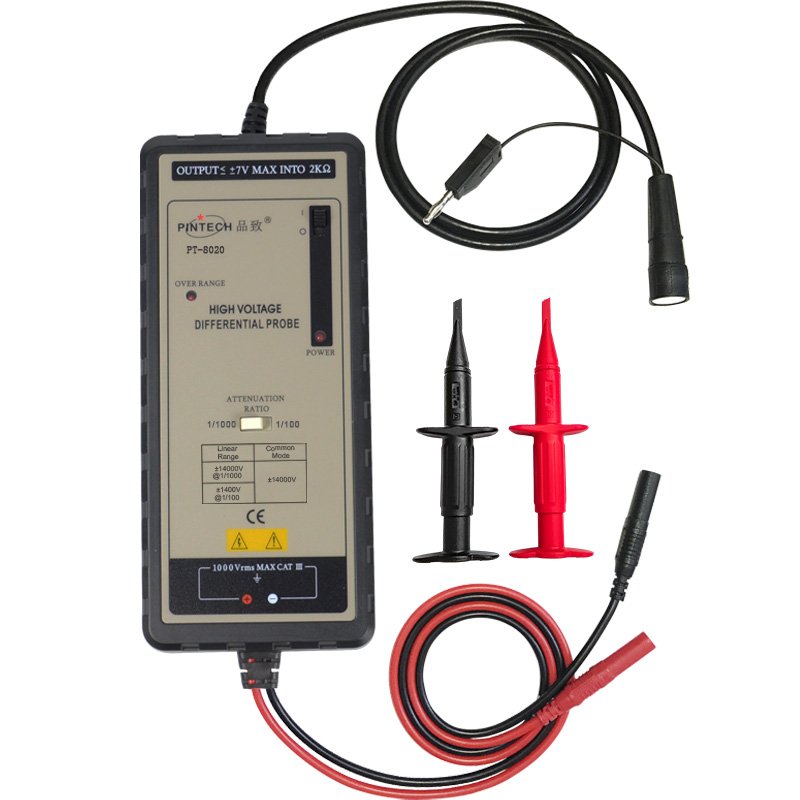

Pintech PT-8020 (14KV,70MHz) differential probe

Pintech PT-8020



PT-8020 (14KVp-p, 70MHz) Bandwidth 70MHz 10KO//2pF each side ground Attenuation ratio : X100 ,X1000 Max. Measuring voltage : 14000V Power supply : battery and power adaptor Accuracy : 2% Compatible with any oscilloscope,standard BNC interface.

Pintech PT-8020 Specification

PT-8020 Specifications
Bandwidth 70MHz
Accuracy ±2%
Input Impedance 10KO//2 p F each side ground
Output Voltage
-Swing(into 50 KO load) ±7V
-Offset(typical) <±5mV
-Noise(typical) 0.9 mV rms
-Source Impedance(typical) 50O
CARR(typical) -80dB @50Hz;-60d B@20KHz
Power Requirements
-Standard 4×AA cells or 6V DC/ adaptor
-Options power leads
Length of BNC Lead 90cm
Length of Input Leads 60cm
Weigh 500g
Dimension(L×W×H) 186mm×83mm×38mm
Model PT-8020
Attenuation Ratio 1:100/1000
Differential Input Voltage(Vp-p) 1400@1/100, 14000@1/1000
Common Mode Voltage 7000V@1/100 & 1/1000
Absolute Max .Input(Each side to ground) CATII 1000V,CAT ? 600V
Features ·Up to 14000Vp-p Differential·Bandwidth up to 70MHz·Safety Certified·Over range Indicator
Applications ·High Voltage Floating Measurement·Voltage Surge Measurement·Power Electronics System Design
