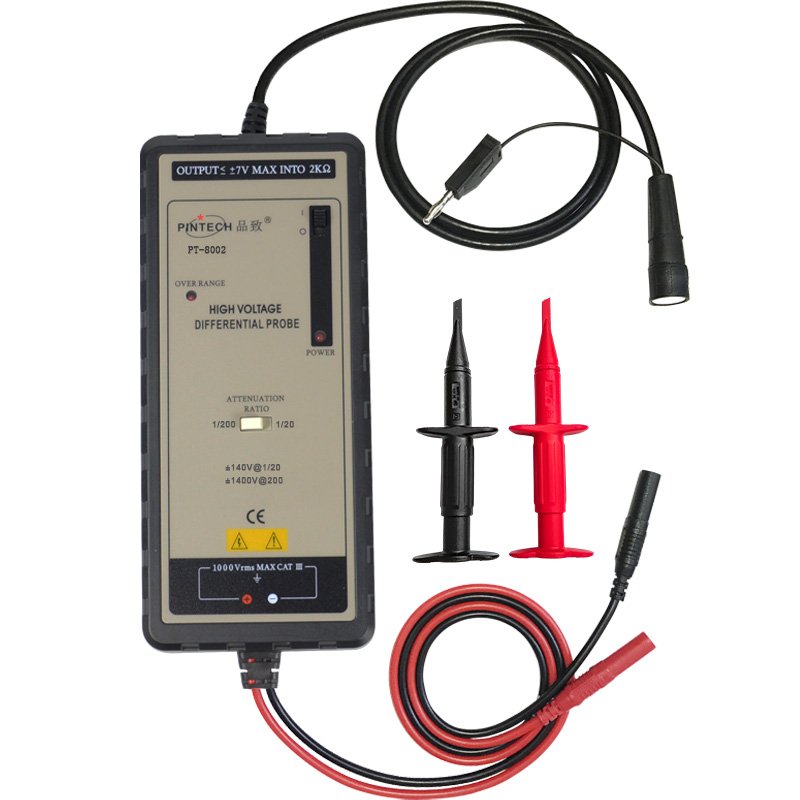

Pintech PT-8002 (1400Vp-p,25MHz) differential probe

Pintech PT-8002



PT-8002 (1400Vp-p,25MHz) Differential probe Bandwidth : 25MHz Attenuation ratio : X10 ,X100 Max. Measuring voltage : 1400Vp-p AC,700V DC Power supply : battery and power adaptor Accuracy : 2% Compatible with any oscilloscope,standard BNC interface.

Pintech PT-8002 Specification

PT-8002 Specifications
Bandwidth 25MHz
Accuracy ±2%
Input Impedance 4MO//5.5 p F each side ground
Output Voltage
-Swing(into 50 KO load) ±7V
-Offset(typical) <±5mV
-Noise(typical) 0.7mV rms
Power Requirements
-Standard 4×AA cells or 6V DC/ adaptor
-Options power leads
Weigh 500g
Dimension(L×W×H) 186mm×83mm×38mm
Model PT-8002
Attenuation Ratio 1:20/200
CMRR(typical) -80dB@50Hz,-60dB@20kHz
Differential Input Voltage(Vp-p) 140@1/20, 1400@1/200
Common Mode Voltage(Vp-p) 1400V@1/20 & 1/200
Absolute Max .Input(Each side to ground) CATII 1000V,CAT ? 600V
Features ·Up to1400V(Vp-p) Differential and Common Mode·Safety Certified ·Economical Cost
Applications ·Switching Power Supply Design·Motor Drive Design·Electronic Ballast Design·CRT Display Design
