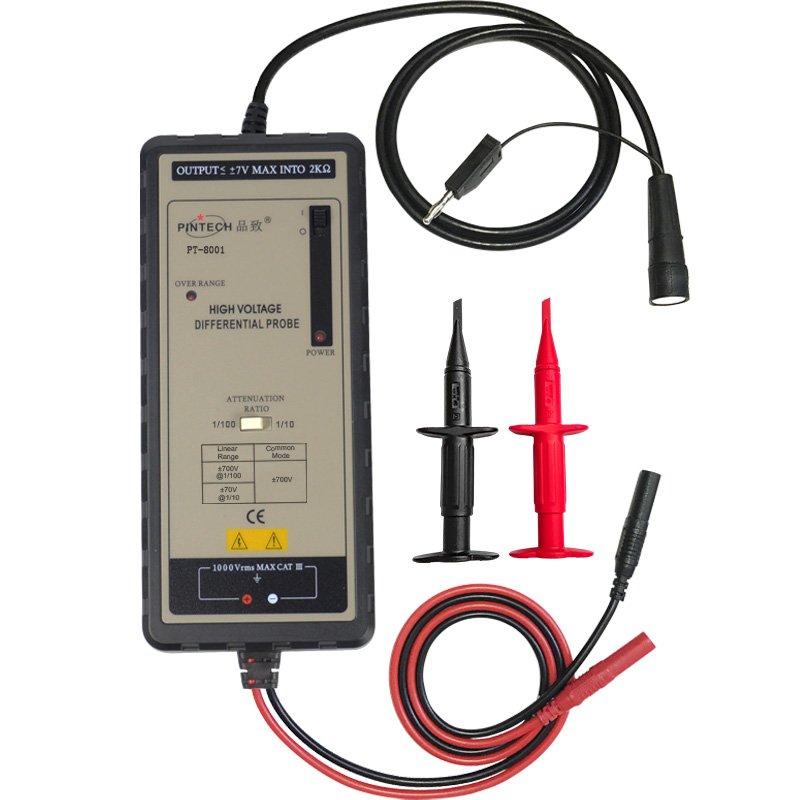

Pintech PT-8001 (700Vp-p,25MHz) differential probe

Pintech PT-8001



PT-8001 (700Vp-p,25MHz) Bandwodth : 25MHz Attenuation ratio : X10 ,X100 Max. Measuring voltage : 700V p-p AC,350V DC Power supply : battery and power adaptor Accuracy : 2% Compatible with any oscilloscope,standard BNC interface.

Pintech PT-8001 Specification

Features
PT-8001 Specifications
Bandwidth 25MHz
Accuracy ±2%
Input Impedance 4MO//5.5 p F each side ground
Output Voltage
-Swing(into 50 KO load) ±7V
-Offset(typical) <±5mV
-Noise(typical) 0.7mV rms
Power Requirements
-Standard 4×AA cells or 6V DC adaptor
-Options Power leads
Weigh 400g (probe and PVC jacket)
Dimension(L×W×H) 186mm×83mm×38mm
Model PT-8001
Attenuation Ratio 1:10/100
CMRR(typical) -86dB@50Hz,-66dB@20KHz
Differential Input Voltage(Vp-p) 70V@1/10, 700V@1/100
Common Mode Voltage(Vp-p) 700V@1/10 & 1/100
Absolute Max .Input(Each side to ground) CATII 1000V,CAT ? 600V
Up to 700V(Vp-p) Differential andCommon Mode /Safety Certified /Economical Cost
Applications ·Switching Power Supply Design·Motor Drive Design·Electronic Ballast Design·CRT Display Design
