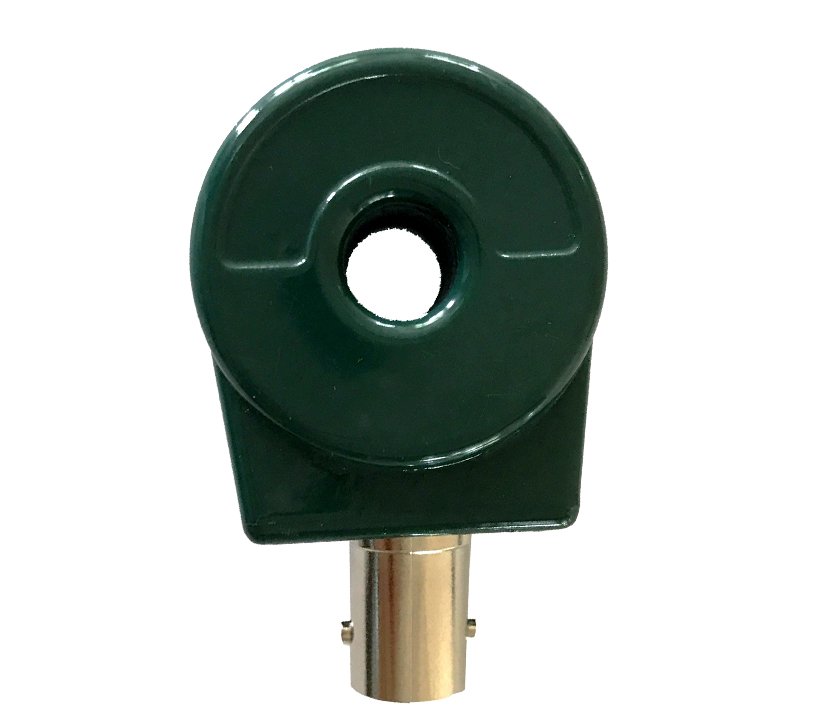

Pintech PT-7802 (10MHz,15A RMS) Ac current test loop(current probe)

Pintech PT-7802



PT-7802 (10MHz,15A RMS) Ac current test loop(current probe) Bandwidth(-3dB) : DC~10MHZ RMS current : 15A Peak current : 600A Max. diameter : 7mm

Pintech PT-7802 Specification

Detailed description :
High frequency current ring PT - 7802 is passive current tester,Possess the characteristic of high precision, easy to use and stable performanceUsed in the current measurement of the degree of high and low frequency power and the electronic circuit. The output end can access electric meter (True RMS) or oscilloscope to count and observe directly
Model PT-7802
Attenuation ratio 100mV/A
Output impedance 50O
Accuracy 3%
Maximum RMS current 15A
3 db low frequency 45Hz
3 db high frequency 10MHz
Output terminal BNC
Current/Voltage 50A/5V
