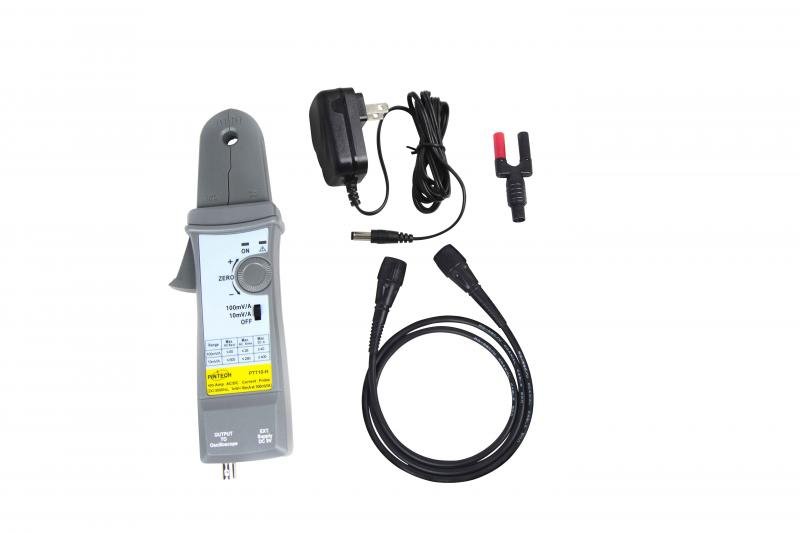

Pintech PT710-H (300KHz,400Ap-p) AC/DC current probe
|
Bandwidth : 300KHz
Max. DC : 200A
Max. AC : 400Ap-p,140Arms
2 Ranges : 10mV/A; 100mV/A
Battery and adaptor power supply
Including MT-246N (BNC to banana interface) ,use for DMM measuring.
|
|
Pintech PT710-H Specification
| Model | PT710-H | | Feature | DC-300KHz,=10mA,low noise | | Max. DC AC Current | ±200A DC | | Max.AC Peak to Peak | 400A P-P | | Max. DC AC RMS | 140A RMS | | Range Selection Division | 2 Range 10mV/A;100mV | | Max. Test Wire Dia. | =11F | | Max. Sensitivity | 10mA | | Bandwidth(-3dB) | DC~300KHz | | Rise time | 1.2µs | | DC Accuracy(Typical) | ±3%:50mA~20A at 100mV/A±4%:500mA~80A at 10mV/A±15%:40A~200A | | Size & weight | 280mm (L) x 70mm (D) x 32 mm (H)260g | | Max. Working voltageMax. Floating voltage | 300V CAT III600V CAT II | | Power supply | Battery(9V NEDA 1604A)or adaptor(included) | | Accessories | BP-250, MT-246N, Adaptor |
|
|
