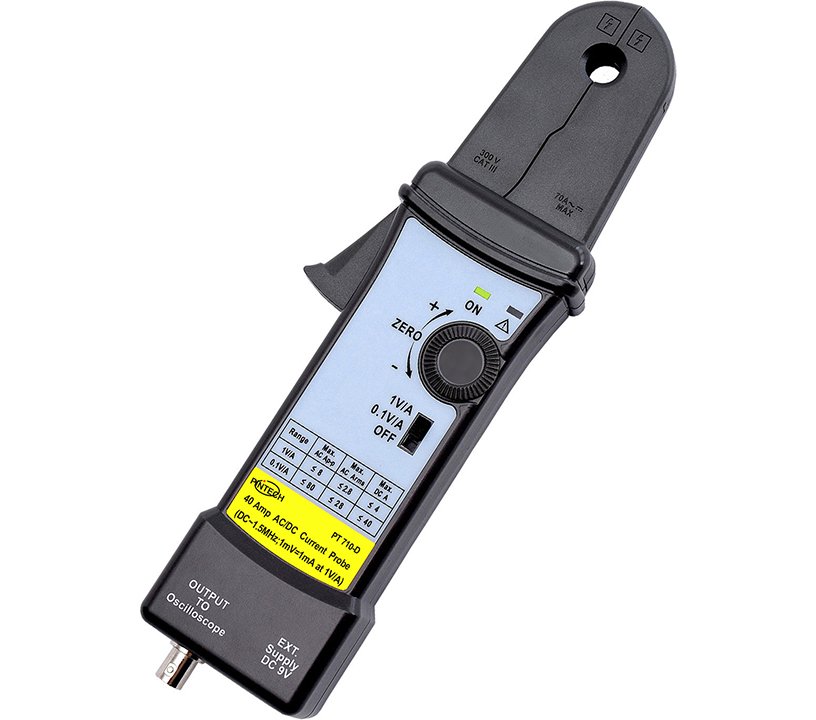

Pintech PT710-D (1.5MHz,40A) Current Probe

Pintech PT710-D



PT710-D (1.5MHz,40A) Current Probe Short Description : 3% : 10mA ~ 8A p-p at 1V/A 4% : 100mA ~ 80A p-p at 0.1V/A Including MT-246N(BNC to banana interface) ,use for DMM measuring.

Pintech PT710-D Specification

Function/Model PT710-D
DC Accuracy Typical 3%: 10mA ~ 8A p-p at 1V/A 4%: 100mA ~ 80A p-p at 0.1V/A
Max. Working Voltage 300V CAT III
Max. Sensitivity 1 mA
Frequency Range DC ~ 1.5MHz (-3dB)
Rise Time 0.23 S
Battery or Adaptor 9V NEDA 1604A, IEC DLR61or PINTECH Specified Adaptor
Accessories BP-250, MT-246N, Adaptor, Insulation Manual.
