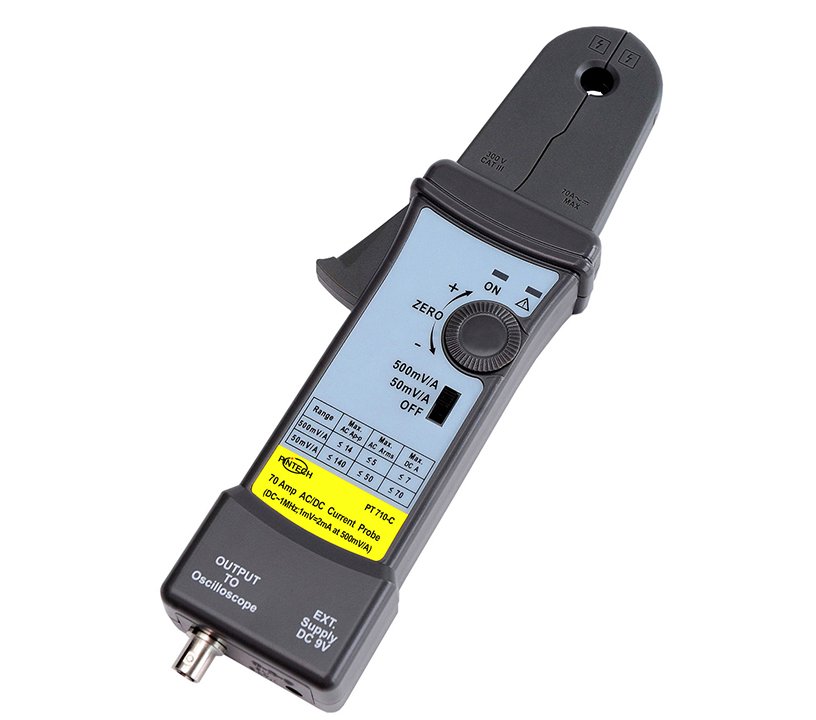

Pintech PT710-C (1MHZ,20mA-70A) Current Probe

Pintech PT710-C



PT710-C (1MHZ,20mA-70A) Current Probe Short Description : 1MHZ,20mA-70A Including MT-246N(BNC to banana interface) ,use for DMM measuring.

Pintech PT710-C Specification

Function/Model PT710-C
DC Accuracy Typical ±3%:20mA~4A peak at 500mV/A±4%:200mA~50A peak at 50mV/A±15%:100A~70A peak
Max. Working Voltage 300V CAT III
Max. Sensitivity 2mA
Frequency Range DC-1MHz(-3dB)
Rise Time 0.35µS
Battery or Adaptor 9V NEDA 1604A, IEC DLR61Or PINTECH Specified, Adaptor
Accessories BP-250,MT-246N,Adaptor Instruction Manual.
