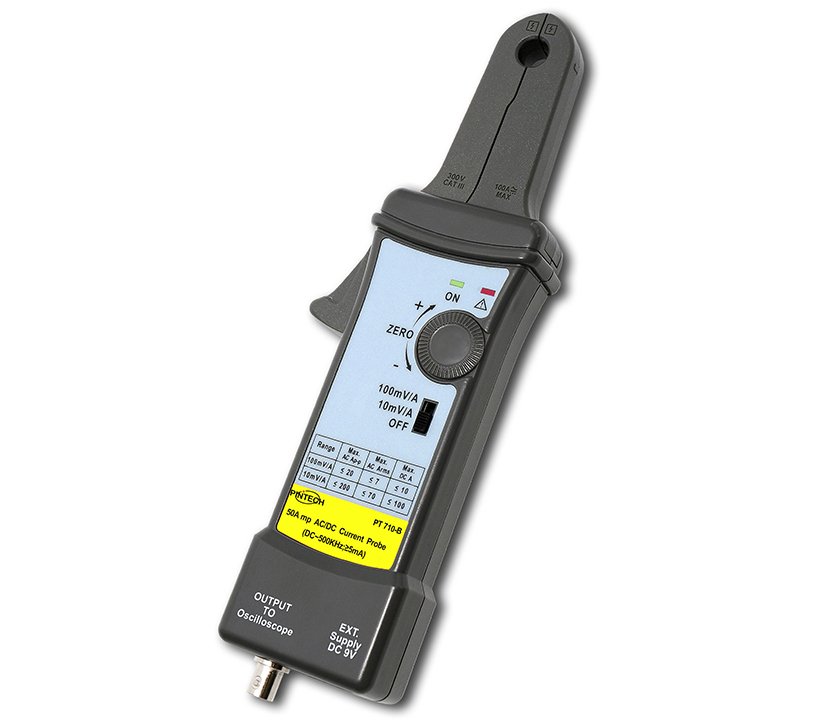

Pintech PT710-B (500KHz,50A) Current Probe

Pintech PT710-B



PT710-B (500KHz,50A) Current Probe Short Description : 500KHZ,30mA-50A Including MT-246N(BNC to banana interface) ,use for DMM measuring.

Pintech PT710-B Specification

MODEL PT710-B
Feature 500KHz,=5mA, Low noise type
Max.DC AC Current 50A DC
Max.DC AC Peak 100A P-P
Max.DC AC RMS 35A RMS
Range Selection Division 2 Range 20mV/A;200mV
Max. Test Wire =11F
Max. Sensitivity 5mA
Bandwidth (-3dB) DC~500KHz
Rise time 0.7s
DC Accuracy(Typical) 3%:30mA~5A peak at 200mV/A4%:300mA~20A peak at 20mV/A15%:20A~50A peak
Max. Working voltageMax. Floating voltage 300V CAT III600V CAT II
