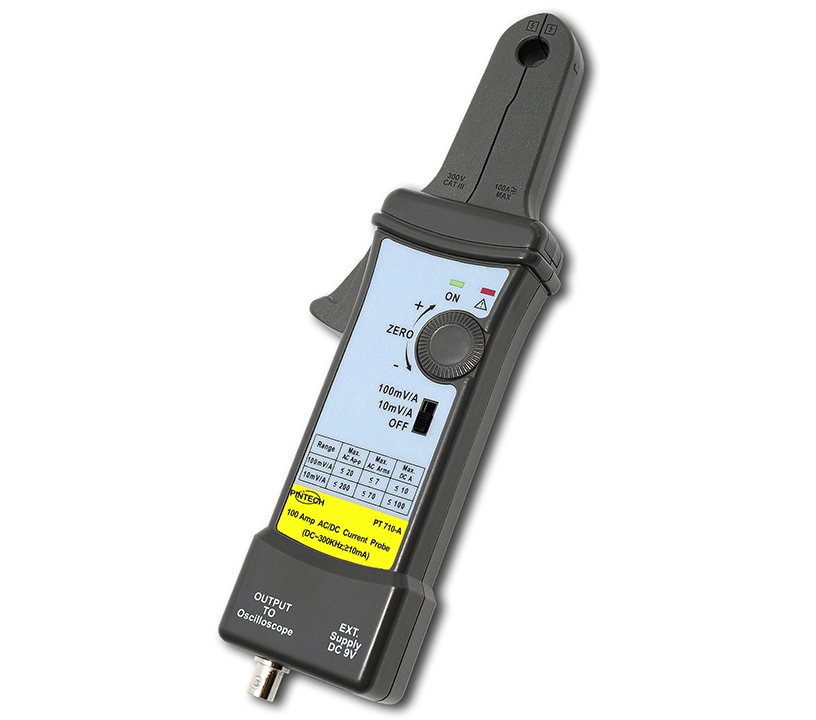

Pintech PT710-A (300KHz,100A) Current Probe

Pintech PT710-A



PT710-A (300KHz,100A) Current Probe Short Description : 300KHZ 0.05A-200Ap-p 3% : 50mA~10A peak at 100mV/A 4% : 400mA~40A peak at 10mV/A 15% : 40A~100A peak Including MT-246N(BNC to banana interface) ,use for DMM measuring.

Pintech PT710-A Specification

MODEL PT710-A
Feature 100KHz,=10mA,Low noise type
Max. DC AC Current 100A DC
Max. DC AC Peak 200A P-P
Max. DC AC RMS 70A RMS
Range Selection Division 2 Range 10mV/A;100mV
Max. Test Wire =11F
Max. Sensitivity 10mA
Bandwidth (-3dB) DC~300KHz
Rise time 1.2s
DC Accuracy(Typical) 3%:50mA~10A peak at 100mV/A4%:400mA~40A peak at 10mV/A15%:40A~100A peak
Max. Working voltageMax. Floating voltage 300V CAT III600V CAT II
