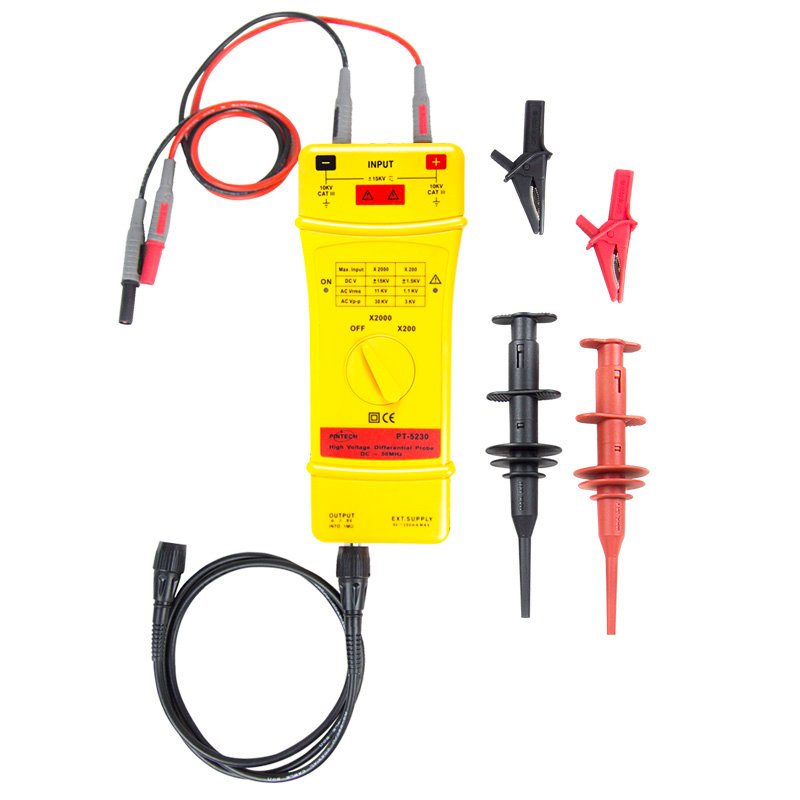

Pintech PT-5230 (30KV,75MHz) differential probe

Pintech PT-5230



PT-5230 (30KV,75MHz) high sensitivity differential probe Range (Switchable) : 2 (X200,X2000) Max. measuring voltage : 15KV DC,30KVp-p AC Accuracy : 2%

Pintech PT-5230 Specification

PT-5230 FUNCTION
Differential Voltage(Vp-p) 30KV
Bandwidth (50O load -3dB) 75MHz,X200,X2000
Common Mode Voltage(Vp-p) 30KV
Common Mode Voltage AC/RMS 10.6KV
Range(Switchable) 2(X200,X2000)
Input Impedance (Between Input) 60MO//1.3PF
Common Mode Rejection Ratio(CMRR) 60Hz>10000:1
100Hz>1000:1
1MHz>300:1
Noise(Into 50O Load) ?1m Vrms
Accuracy ?±2%
Power Auto Regulation System DC 6~12 V
Power Source External DC 9V/200mA
Accessories BP-250,BP-276N,BP-286,BP-366,PX-502,ADP-110(or ADP-220)
