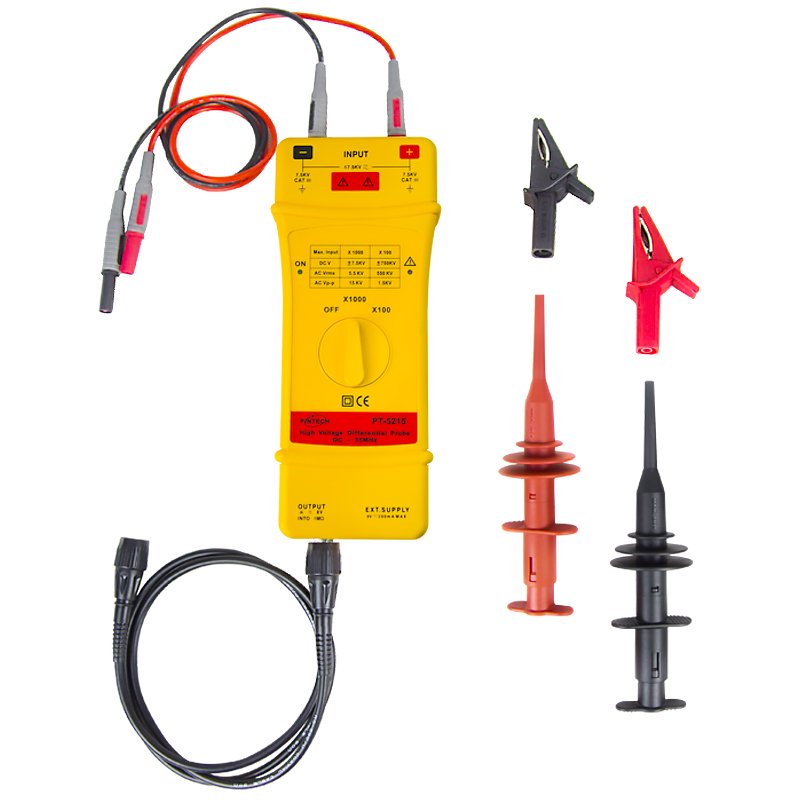

Pintech PT-5215 (35MHz,15KV) differential probe

Pintech PT-5215



PT-5215 (15KVp-p,35MHz) Max. Measuring voltage : 15KVp-p AC, 7.5KV DC Bandwidth : 35MHz Attenuation ratio:X100 X1000 Compatible with any oscilloscope

Pintech PT-5215 Specification

Model:PT-5215
Differential voltage DC+AC (Vp-p) 15KV
Bandwidth (50O load -3dB) 35MHz
Max. Measuring voltage( DC+AC(Vp-p)) 15KV
Input voltage AC/RMS 5.5KV
Attenuation ratio(Switchable) 2(100, 1000)
Input impedance (Between Input) 50MO // 1.3PF
Input impedance R//C 25MO // 2.6PF
(CMRR) 60Hz>10000:1
100Hz>1000:1
Noise (Into 50O Load) ?1m Vrms
Accuracy ?2%
Max. voltage ?8V
Output impedance 50O
Over protection Any Range ,Input Voltage Exceed the Max.Voltage 90%
Power supply range DC 6~12 V
Power supply External 9V DC Adaptor
Accessories BP-250,BP-276N,BP-286,BP-366,PX-502,ADP-110(or ADP-220)
