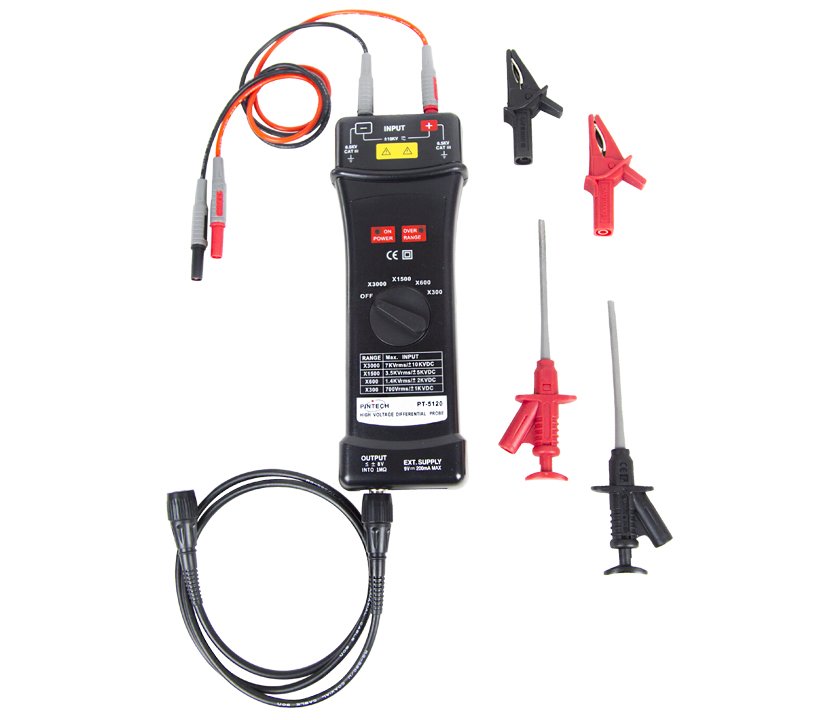

Pintech PT-5140 (14KVp-p,75MHz) differential probe for oscilloscope

Pintech PT-5140



PT-5140 (14KVp-p,75MHz) Max. Measuring voltage : 14KV Bandwidth : 75MHz Attenuation ratio : 200xX,400X,1000X,2000X Over the working voltage and the high operating frequency (Stop manufacturing,check N1140A, PT-8020 for replacing)

Pintech PT-5140 Specification

Model PT-5140
Bandwidth (50Oload) DC~75MHz(-3dB)
DC~35MHz(attenuation x200 tap position)
Switchable x200?x400?x1000?x2000
Accuracy 2%
Max. Operating Voltage (Vp-p) When 200X, =1400V
When 400X, =2800V
When 1000X, =7000V
When 2000X, =14000V
Max. input differential-mode voltage(Vp-p) 14KV(DC+AC PEAK TO PEAK 6500V RMS)
Input impedance Differential:54M?/1.2pFpower supply:27M?/2.3pF
Output voltage =7.0V
Output impedance 50?
Rise time 4.7 ns for x400?x1000?x2000 10 ns for x200
Noise suppression rate 60Hz:>80dB
100Hz:>60dB
1MHz:>50dB
Power supply 9V DC power supply
Power consumption Max. Power consumption35mA(0.4W)
