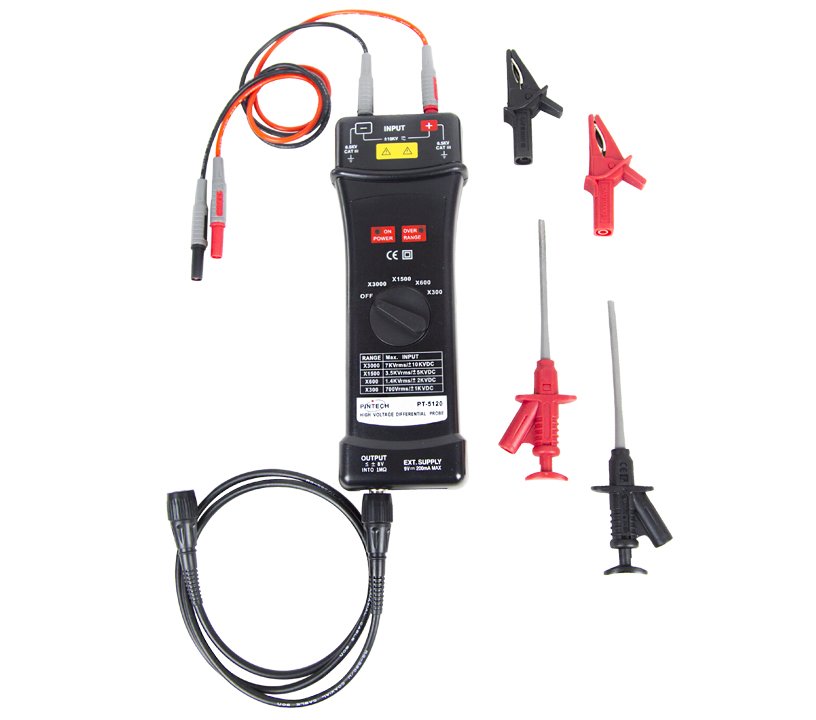

Pintech PT-5120 (20KVp-p,20MHz) differential probe

Pintech PT-5120



PT-5120 (20KVp-p,20MHz) 4 attenuation ratio : X300, X600, X1500, X3000 Max. Measuring voltage : 20KVp-p AC,10KV DC Bandwidth : 20MHz High working voltage and high operating frequency

Pintech PT-5120 Specification

Model PT-5120
Bandwidth (50Oload) 20MHz
Accuracy 2% ( Heat the machine for twenty minutes )
Switchable X300,X600,X1500,X3000
Max. Operating Voltage(DC+AC peak to peak) When X300, =2000V When X600, =4000VWhen X1500, =10000V When X3000, =20000V
Max. input differential-mode voltage 20kV(DC+AC peak to peak)
CMRR 60Hz:>20000:1
100Hz:>2000:1
1MHz:>600:1
Noise =2mVrms(50Oload)
Input impedance 100MO//1.25PF(Between both ends)50MO//2.3PF(Single end to ground impedance)
Power source 9V(AC Adaptor)
power consumption 9V/35mA
contour dimension 235mm(L)X85mm(W)X35mm(H)
Weight 290g
