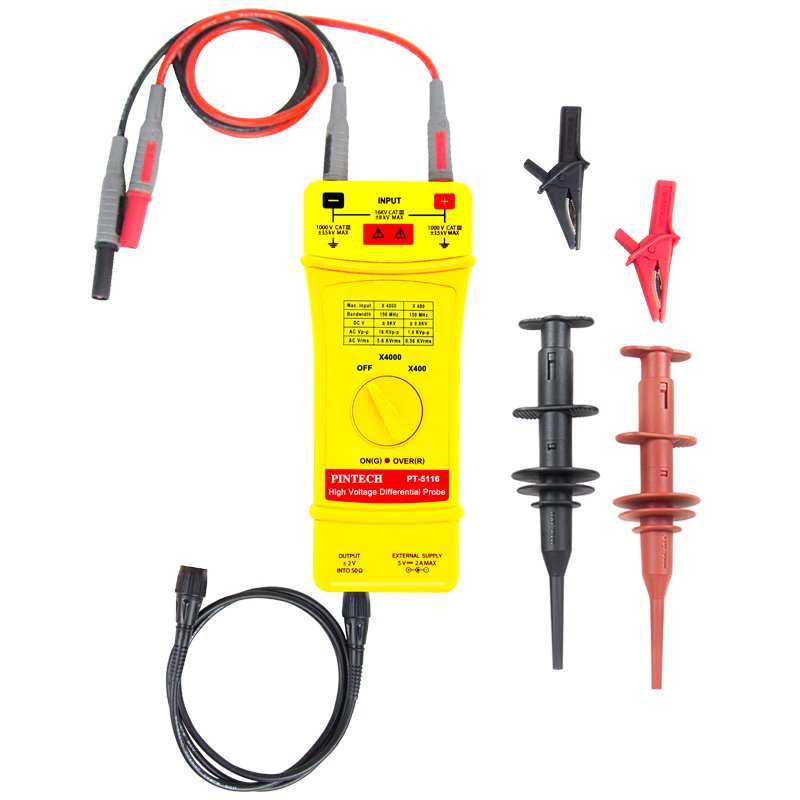

Pintech PT-5116 (150MHz,16KVp-p) high frequency high voltage differential probe

PT-5116 differential probe provides a safety means of measuring floating potentials for all models of oscilloscopes compatiblly. It converts high differential voltage (=16KVp-p) into low voltage(=2V) with reference to the earth for display on the oscilloscopes.The BNC output is designed to operate on an input impadance oscilloscope of 50O.

Pintech PT-5116 Specification

Model	PT-5116
Bandwidth(50O load-3Db)	150MHz
Input differential voltage	±800V(DC+AC peak),about 560Vrms at X400 ;±8000V(DC+AC peak),about 5.6KVrms at X4000
Attenuation ratio(Switchable)	×400. ×4000
Input impedance(Differential)	20MO//5PF
Input impedance (Each)	10MO//10PF each side to ground
CMRR	60Hz: 80dB;100Hz:60dB;1MHz:50dB
Noise	=1mVrms
Accuracy	=±2%
Max. Output voltage	=±2V
Input impedance of oscilloscope	50O
Power supply	5V DC
Dimension/ Weight	220x85x30/450g
