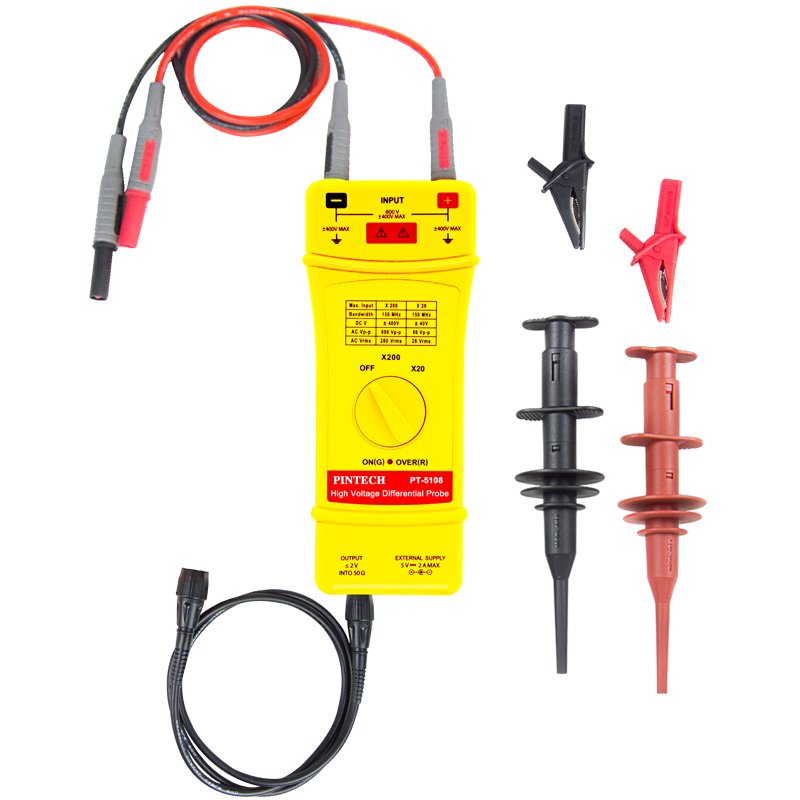

Pintech PT-5108 (150MHz,800Vp-p) high frequency differential probe

Pintech PT-5108



PT-5108 differential probe provides a safety means of measuring floating potentials for all models of oscilloscopes compatiblly. It converts high differential voltage (=800Vp-p) into low voltage(=2V) with reference to the earth for display on the oscilloscopes.The BNC output is designed to operate on an input impadance oscilloscope of 50O.

Pintech PT-5108 Specification

Model PT-5108
Bandwidth(50O load-3Db) 150MHz
Input differential voltage ±40V(DC+AC peak), about 28Vrms at X20±400V(DC+AC peak), about 280Vrms at X200
Attenuation ratio(Switchable) ×20. ×200
Input impedance(Differential) 20MO//5PF
Input impedance (Each) 10MO//10PF each side to ground
CMRR 60Hz: 80dB;100Hz:60dB;1MHz:50dB
Noise =1mVrms
Accuracy =±2%
Max. Output voltage =±2V
Input impedance of oscilloscope 50O
Power supply 5V DC
Dimension/ Weight 220x85x30mm/450g
