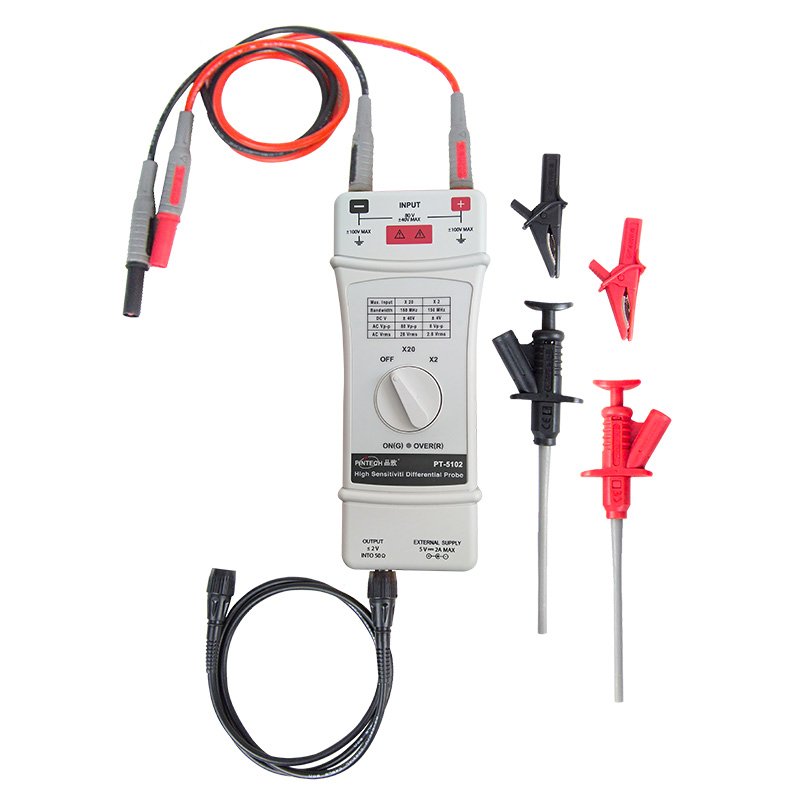

Pintech PT-5102 (150MHz,80Vp-p) high sensitivity differential probe

Pintech PT-5102



2mV High Sensitivity ! This differnetial probe provides a safety means of measuring floating potentials for all models of oscilloscopes incomplete safety. It converts the differential voltage (40V DC peak) into a low voltage(=±2V) with reference to the earth for display on the oscilloscope.

Pintech PT-5102 Specification

Model PT-5102
Bandwidth DC-150MHz(-3dB)
Accuracy ±2%
Attenuation ratio x2,x20
Input voltage range x2 =8Vp-p,±4V DC
x20 =80Vp-p,±40V DC
Max. Input voltage 80Vp-p
Noise =1mV rms
Input impedance 50KO//15PF(single end)
Oscilloscope input impedance setting 50O
Consumption/Power supply 500mA/5V DC
Dimension (mm) 220(L)x85(W)x30(H)
Weight 450g

Feel free to contact us for any queries you may have.
