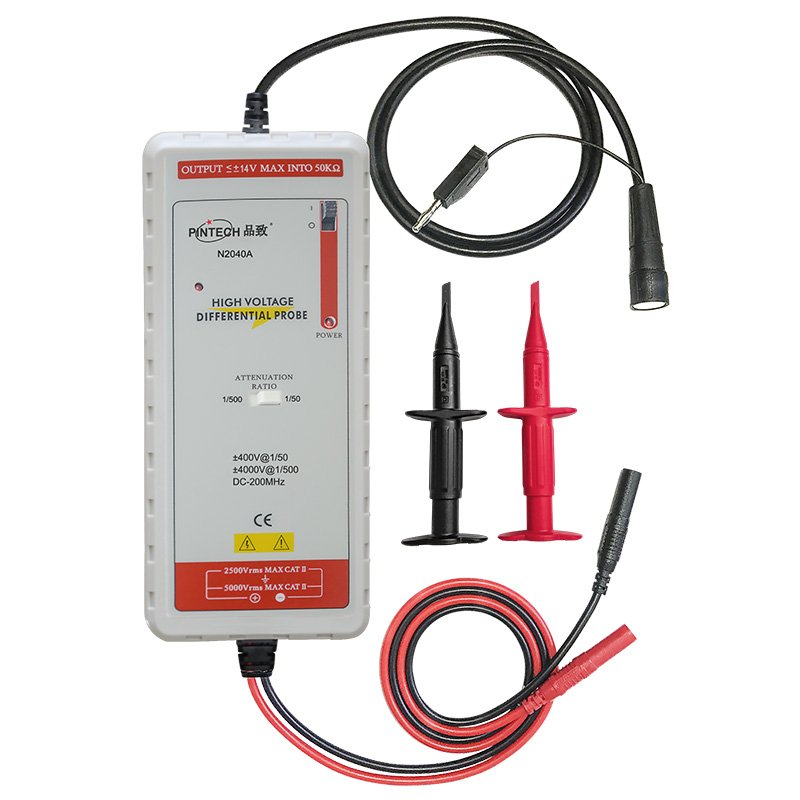

Pintech N2040A (200MHz,4000V) High frequency differential probe

Pintech N2040A



200MHz differential probe, with standard BNC connector,compatible with any oscilloscope. Very high frequency.

Pintech N2040A Specification

Model N2040A
Bandwidth 200MHz
Attenuation ratio 1:500/50
Rise time 1.75ns
Accuracy 1%
Input voltage 4000Vp-p,2000V DC @1/500400VP-P,200V DC@1/50
Input voltage 1470V rms AC
Input impedance 8MO/1pF4MO/2pF
Output voltage =7V
Output impedance 50O(choose 1MOinput impedance on oscilloscope)
CMRR -80dB@60Hz,-50dB@100KHz
Power supply 6V DC(use ADP-230 only)
