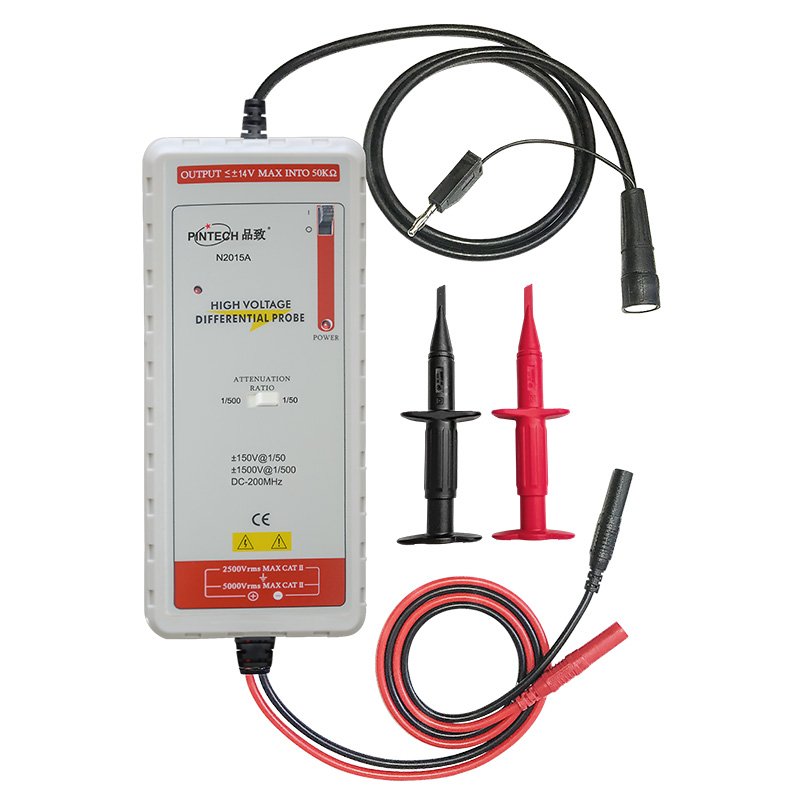

Pintech N2015A (200MHz,2000V) High frequency differential probe

Pintech N2015A



200MHz differential probe,standard BNC connector,compatible with any oscilloscope.

Pintech N2015A Specification

Model N2015A
Bandwidth 200MHz
Attenuation ratio 1:500/50
Rise time 1.75ns
Accuracy 1%
Input voltage 2000Vp-p AC@1/500200Vp-p AC@1/50 1000V DC@1/500100V DC@1/50
AC 700V rms
Input impedance 8MO/1pF4MO/2pF
Output voltage =7V
Output impedance 50O(choose 1MOinput impedance on oscilloscope)
CMRR -80dB@60Hz,-50dB@100KHz
Power supply 6V DC(use ADP-230 only)
