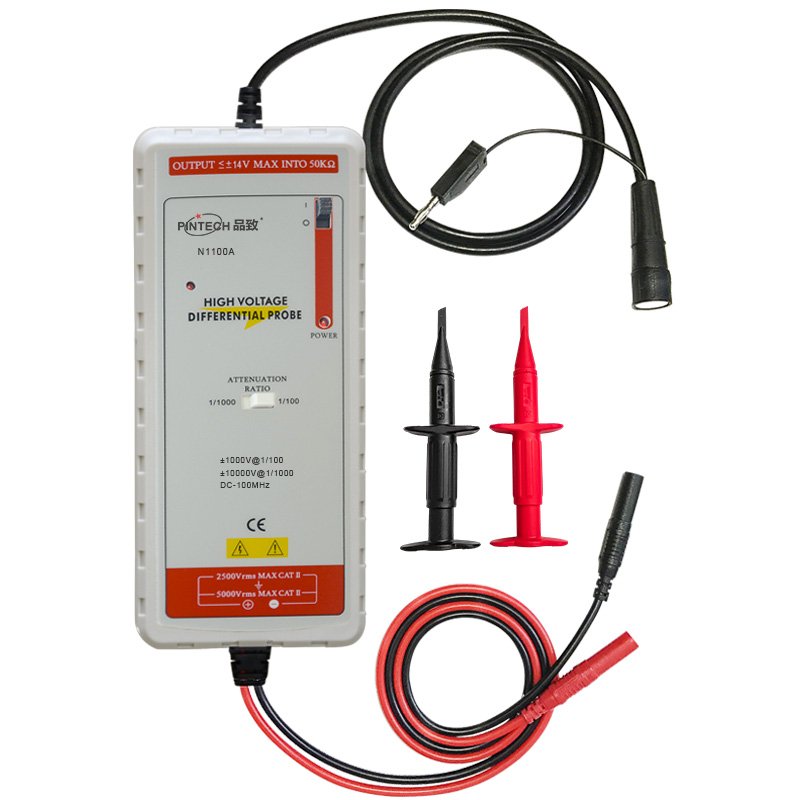

Pintech N1100A (10KVp-p,100MHz) high frequency differential probe

Pintech N1100A



Bandwidth 100MHz Ma. measuring voltage : 10KVp-p Attenuation ratio : 1000 : 1,100 : 1 Compatible with any brand's oscilloscope. 1% accuracy,compatible with any oscilloscope,standard BNC interface. 2 attenuation ratio range,easy to operating. Battery & adaptor power supply.

Pintech N1100A Specification

Model N1100A
Product Name N1100A(10KVp-p,100MHz)
Short Description PINTECH N1100A(100MHz X1000 X100 10KVp-p)
Bandwidth DC-100MHz
Accuracy ±1%
In put Impedance 10MO//2 p F each side ground
Input Voltage
-Swing(into 50 KO load) 7V
-Offset(typical) <±5Mv
Typical 50O(for using 1M ohm input system oscilloscope)
Power Supply
-Options power leads
Length of BNC Cable 90cm
Length of Input Leads 60cm
Weight 500g
(L×W×H) 245x84x36mm
Attenuation Ratio 1:1000/100
CMRR(typical) -80dB@60Hz,-50d B@100KHz
maximum input differential-mode voltage(Vp-p) 10KV@1/1000, 1KV@1/100
Maximum input and ground potential difference(Vp-p) 10KV@1/1000 & 1/100
CMRR CATII 1000V,CAT? 600V
