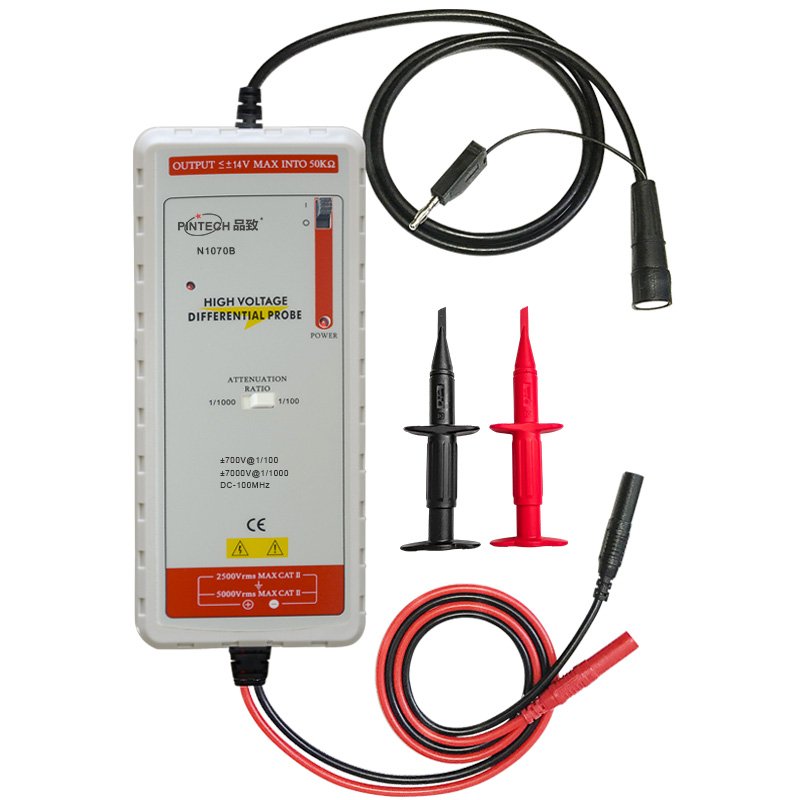

Pintech N1070B (7KVp-p,100MHz) high voltage differential probe

Pintech N1070B



Bandwidth 100MHz Ma Measuring Voltag 10KVpp Voltage overload protection Input impedance 10MO//2pF each side ground Compatible with any brand's oscilloscope. 1% accuracy,compatible with any oscilloscope,standard BNC interface. 2 attenuation ratio range,easy to operating. Battery & adaptor power supply.

Pintech N1070B Specification

Product Introduction
Product Name N1070B (7000Vp-p,100MHz)
Short Description PINTECH N1070B(100MHz X100 X1000 7000Vp-p)
specification
Bandwidth DC-100MHz
Accuracy 1%
Input Impedance 10MO//2 p F each side ground
Input Voltage
-Swing(into 50 KO load) 7V
-Offset(typical) <5Mv
Typical 50O(for using 1M ohm input system oscilloscope)
Power Supply
-Options power leads
Length of BNC Cable 90cm
Length of Input Leads 60cm
Weight 500g
Attenuation Ratio 1:1000/100
CMRR(typical) -80dB@60Hz,-50d B@100KHz
maximum input differential-mode voltage(DC+ Peak AC) 3500V@1/1000, 350V@1/100
Maximum input and ground potential difference(DC +Peak AC) 3500V@1/1000 & 1/100
(CMRR) CATII 1000V,CAT? 600V

<
